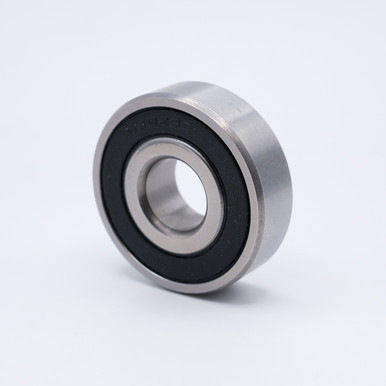

    6309-2RS Ball Bearing 45x100x25

    (You save )
    (No reviews yet) Write a Review
    SKU:
    6309-2RS
    Minimum Purchase:
    50 units
    Inner Diameter:
    45mm
    Outer Diameter:
    100mm
    Width:
    25mm
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Interchange Numbers:
    6309RS, 6309LU, 6309LB, 6309DU, 6309VV, 6309.2RSJ1, 6309EE, 6309 2RU, 309PP, 309SZZ, 6309-2NSL, 99309, 6L058, 5972K363, 6661K131
    Static Load:
    7,200 lbs
    Dynamic Load:
    11,900 lbs
    Grease RPM Limit:
    6,700 RPM
    Oil RPM Limit:
    7,800 RPM

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Reviews

    Product Description

    6309-2RS is Precision Radial Deep Groove Ball Bearing Both Sides Rubber Sealed and Pre-Lubricated with Grease

    The 6309-2RS is a 45mm single row radial ball bearing that’s sealed with rubber on both sides and pre-lubricated with bearing grease. It’s a 100mm OD sealed ball bearing 6309ZZ made of chrome steel and features deep groove geometry that’s perfect for high speeds and heavy radial and axial loads. Rolling bearings like 6309EE use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed and Shielded bearings are lubricated with oil or grease in the bearing factory, while open bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan.

    99309 bearing is used in a range of applications from agricultural machinery to conveying equipment, electric motors, CNC machinery, trucks, mining equipment, train, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, motorcycles, household appliances, power tools and machines, gear boxes, and among others.

    Usage: Electric Motor, Fan, Power Tools, Conveyor Bearing, Pilot Bearing, Casters Bearing, Dolly Wheel Bearing, Alternator, Gear Box, Tension Pulley, Wheel Bearing and much more.

    Match #: 6309RS, 6309LU, 6309LB, 6309DU, 6309VV, 6309.2RSJ1, 6309EE, 6309 2RU, 309PP, 309SZZ, 6309-2NSL, 99309, 6L058, 5972K363, 6661K131

    Product Videos

    Custom Field

    Inner Diameter 45mm
    Outer Diameter 100mm
    Width 25mm
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Interchange Numbers 6309RS, 6309LU, 6309LB, 6309DU, 6309VV, 6309.2RSJ1, 6309EE, 6309 2RU, 309PP, 309SZZ, 6309-2NSL, 99309, 6L058, 5972K363, 6661K131
    Static Load 7,200 lbs
    Dynamic Load 11,900 lbs
    Grease RPM Limit 6,700 RPM
    Oil RPM Limit 7,800 RPM
