2 Bolt Flange Bearings

15/16" bore SUCSFL205-15 Stainless Steel 2 Bolt Flange Set Screw Bearing

SKU: SUCSFL205-15
  • Free shipping on most orders
  • Ships from Glendale, CA

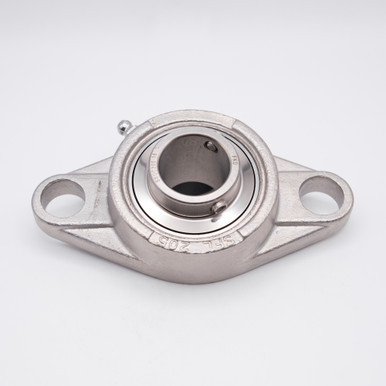

  • SUCSFL205-15 Stainless Steel 2 Bolt Flange Unit 15/16" bore Top View

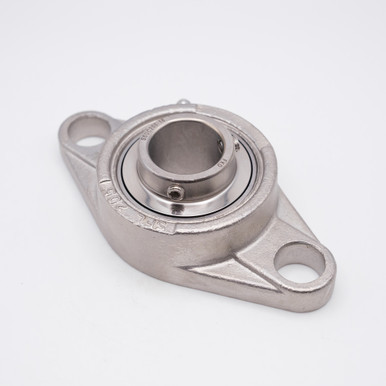

  • SUCSFL205-15 Stainless Steel 2 Bolt Flange Unit 15/16" bore Side View
  • SUCSFL205-15 Stainless Steel 2 Bolt Flange Unit 15/16" bore Grease Feed View

    • Minimum order: 100 pieces Quotes for this part start at 100 pieces.

    Minimum order: 100 units

    Your quote includes pricing and lead time.

    How ordering works

    1. Request a quote for this partChoose a quantity of 100 or more.
    2. Get pricing and lead time by emailYour quote is emailed to you.
    3. Click “Proceed to checkout”Use the button in that email to place your order.
    Specifications

    Dimensions

    Bore (inner diameter)15/16"
    Overall Length5-1/8"
    Bolt-hole spacing3-57/64"
    Overall Width2-43/64"

    Construction

    Bearing MaterialStainless Steel AISI-440C
    Housing MaterialStainless Steel AISI-440C
    LubricationChevron SRI-2 Grease
    Country of OriginChina

    Performance

    Static Load1,440 lbs
    Dynamic Load2,670 lbs
    Speed Limit6,250 RPM

    Interchange numbers 3

    • SUCSFL205-15XEH1S6
    • S2F100SS-15/16
    • SF2S-15/16
    Ordering & returns
    Lead time

    Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

    Before you order

    Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

    Shipping and returns

    Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

    Description

    SUCSFL205-15 2-Bolt Stainless Steel Flange Unit

    Key Features

    SUCSFL205-15 is a SUCSFL200 Series 2-Bolt Flange Stainless Steel Unit equipped with a Set Screw Locking Insert Ball Bearing. This kind of bearing is primarily designed to minimize friction between parts and allow unrestricted rotation of moving elements. Made from Stainless Steel AISI-440C, this bearing is resistant to corrosion from moisture and do not experience any flaking, breaking, deformation, or discolouration problems that are common with other non corrosion-resistant housing materials. This Flange Mounted Block Unit features two set screws, found on the extended end of the inserts inner ring, which can be tightened onto a shaft. This unit has also been made with grease feed access, allowing for re-lubrication of the insert if necessary. Our SUCSFL205-15 are pre-lubricated with grease ensuring the product is ready for use upon arrival.

    Applications / Industries

    SUCSFL205-15 2-Bolt Flange Stainless Steel Units are widely used in various Manufacturing Equipment, Agricultural Machinery, Conveyor Systems, Film Processing Machinery, Fitness Equipment, Salt Water Desalination Plants, Food Handling Industry, Pumps, Water Treatment Plants, among others.
