• UCT204-12 Take-Up Bearing Unit 3/4" Bore Left Angled View
  • UCT204-12 Take-Up Bearing Unit 3/4" Bore Front View

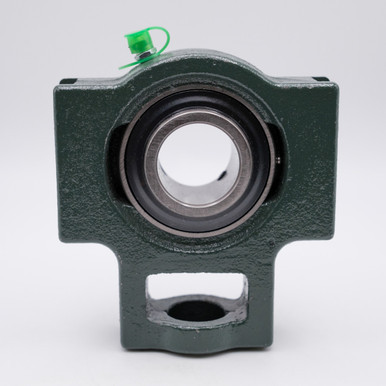

  • UCT204-12 Take-Up Bearing Unit 3/4" Bore Back View
  • UCT204-12 Take-Up Bearing Unit 3/4" Bore Flat View

    • UCT204-12 Take-Up Bearing Unit 3/4" Bore UCT204-012T

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    UCT204-12
    Minimum Purchase:
    100 units
    Inner Diameter:
    3/4"
    Overall Height:
    94mm
    Overall Length:
    89mm
    Base to Center:
    61mm
    Rod End Diameter:
    19mm
    Slot Size:
    12mm
    Housing Material:
    Cast Iron
    Insert Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    2,500 lbf
    Dynamic Load:
    2,900 lbf
    Speed Limit:
    7,450 RPM
    Country of Origin:
    China
    Interchange Numbers:
    UCT204-12, UCT204-012T

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    UCT204-12 bearing is High quality 3/4" take-up bearing. The bearing has a wide inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing and pre-lubricated with bearing grease to allow them to be ready to use upon arrival.

    Sizes: Bore: 3/4" Bolt hole: .748 in. (19mm) Overall length: 3.7 in. (94mm) Slot size: .472 in. (12mm) Width from slot to slot: 2.99 in. (76mm)

    Interchange: UCT204-12, UCT204-012T

    Product Videos

    Custom Field

    Inner Diameter 3/4"
    Overall Height 94mm
    Overall Length 89mm
    Base to Center 61mm
    Rod End Diameter 19mm
    Slot Size 12mm
    Housing Material Cast Iron
    Insert Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 2,500 lbf
    Dynamic Load 2,900 lbf
    Speed Limit 7,450 RPM
    Country of Origin China
    Interchange Numbers UCT204-12, UCT204-012T
