Product Description

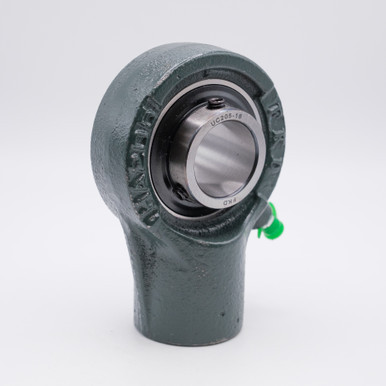

UCHA206-17 Conveyor Hanger Unit with Set Screw Ball Bearing, Pre-lubricated with Grease
UCHA206-17 conveyor hanger unit bearing has a cast iron flange housing with a set screw. This ready-to-mount unit has a cast iron housing, chrome steel bearings, and is designed for efficient operation at a wide range of speeds. The unit is secured to the shaft with set screws to prevent slippage. These bearings are most commonly used in mechanical equipment where moderate loads and shaft speeds are involved where the shaft and mounting surface are perpendicular to each other.
Product Videos
Custom Field
Bore Size 1-1/16"
Base to Center 2-33/64" (64mm)
Static Load 2,500 lbs
Dynamic Load 4,300 lbs
Housing Material Cast Iron
Bearing Material Chrome Steel
Lubrication Chevron SRI-2 Grease
Speed Limit 5,300 RPM
