Conveyor Hanger Mounted Bearings

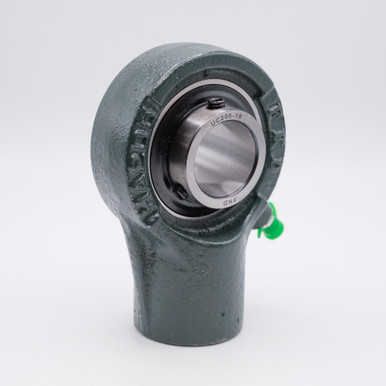

UCHA206-19 Conveyor Hanger Unit Mounted Bearing 1-3/16" Bore
- Free shipping on most orders
- Ships from Glendale, CA
Specifications
Dimensions
| Bore (inner diameter) | 1-3/16" |
|---|---|
| Base to center height | 2-33/64" (64mm) |
Construction
| Bearing Material | Chrome Steel |
|---|---|
| Housing Material | Cast Iron |
| Lubrication | Chevron SRI-2 Grease |
Performance
| Static Load | 2,500 lbs |
|---|---|
| Dynamic Load | 4,300 lbs |
| Speed Limit | 5,300 RPM |
Ordering & returns
Lead time
Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.
Before you order
Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.
Shipping and returns
Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.
Description
UCHA206-19 Conveyor Hanger Unit with Set Screw Ball Bearing, Pre-lubricated with Grease
UCHA206-19 conveyor hanger unit bearing has a cast iron flange housing with a set screw. This ready-to-mount unit has a cast iron housing, chrome steel bearings, and is designed for efficient operation at a wide range of speeds. The unit is secured to the shaft with set screws to prevent slippage. These bearings are most commonly used in mechanical equipment where moderate loads and shaft speeds are involved where the shaft and mounting surface are perpendicular to each other.
