Product Description

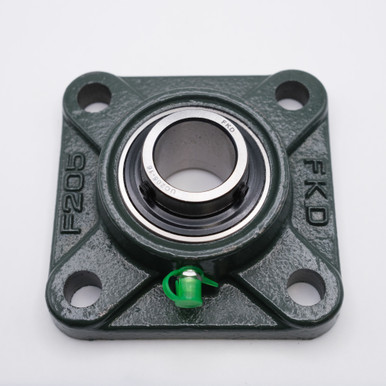

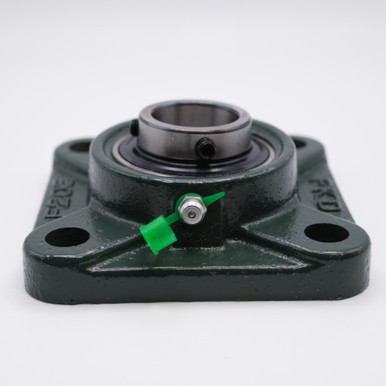

UCF210-32 bearing is 4-Bolt Flange Bearing containing a wide inner ring with two set screws for the attachment of the shaft. This 4-Bolt Flange Bearing has a combination of set screw chrome steel inserts with a slinger seal design and a unique cast iron 4-Bolt Flange housing with an anti-rotation device.
The UCF200 Series 4-Bolt Flange Bearing is mainly applied on the occasion that the side which is vertical to the axis is fixed by 4 bolts. Its fixed mode is the same with UCF210-32 Pillow Block Bearing and widely used in machinery.
This flange bearing is commonly used for HVAC, Coveying, Processing, Feed Mill, Agricultural and many other Industrial Applications.
Match #: FG16210.2, FG56210.2, UGLF210-32, FB220x2, FB250x2, UCF210-200
Product Videos
Custom Field
Bore Size 2"
Bolt Hole to Bolt Hole 4-3/8" (111mm)
Static Load 5,327 lbs
Dynamic Load 7,866 lbs
Housing Material Cast Iron
Bearing Material Chrome Steel
Lubrication Chevron SRI-2 Grease
Interchange Numbers FG16210.2, FG56210.2, UGLF210-32, FB220x2, FB250x2, UCF210-200
Speed Limit 3,400 RPM
