• UCF210-29 4-Bolt Flanged Mounted Block Bearing 1-13/16" Bore Top View

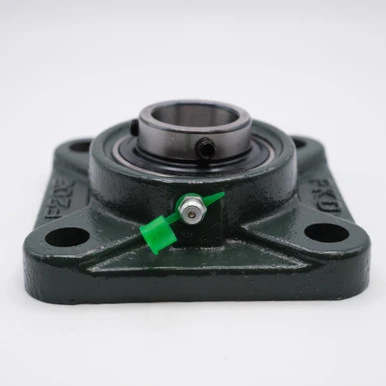

  • UCF210-29 4-Bolt Flanged Mounted Block Bearing 1-13/16" Bore Side View
  • UCF210-29 4-Bolt Flanged Mounted Block Bearing 1-13/16" Bore Angled Side View
  • UCF210-29 4-Bolt Flanged Mounted Block Bearing 1-13/16" Bore Bottom View

    • UCF210-29 Four Bolt Flanged Mounted Bearing 1-13/16" Bore

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Wholesale Pricing By Quote — Request a Quote
    Write a Review
    SKU:
    UCF210-29
    Minimum Purchase:
    100 units
    Inner Diameter:
    1-13/16"
    Bolt Hole to Bolt Hole:
    4-3/8" (111mm)
    Static Load:
    5,215 lbs
    Dynamic Load:
    7,868 lbs
    Housing Material:
    Cast Iron
    Bearing Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Interchange Numbers:
    UCF210-29, EWFH210-29S, SF113FF, UCF210-29S, UCF210-113T, UELF210-113T, UELFU210-113T
    Speed Limit:
    3,400 RPM
    Request a Quote for 100+ Units

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    UCF210-29 bearing is 4-Bolt Flange Bearing containing a wide inner ring with two set screws for the attachment of the shaft. This 4-Bolt Flange Bearing has a combination of set screw chrome steel inserts with a slinger seal design and a unique cast iron 4-Bolt Flange housing with an anti-rotation device.

    The UCF200 Series 4-Bolt Flange Bearing is mainly applied on the occasion that the side which is vertical to the axis is fixed by 4 bolts. Its fixed mode is the same with UCF210-29 Pillow Block Bearing and widely used in machinery.

    This flange bearing is commonly used for HVAC, Conveying, Processing, Feed Mill, Agricultural and many other Industrial Applications.

    Match #: UCF210-29, EWFH210-29S, SF113FF, UCF210-29S, UCF210-113T, UELF210-113T, UELFU210-113T

    Product Videos

    Custom Field

    Inner Diameter 1-13/16"
    Bolt Hole to Bolt Hole 4-3/8" (111mm)
    Static Load 5,215 lbs
    Dynamic Load 7,868 lbs
    Housing Material Cast Iron
    Bearing Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Interchange Numbers UCF210-29, EWFH210-29S, SF113FF, UCF210-29S, UCF210-113T, UELF210-113T, UELFU210-113T
    Speed Limit 3,400 RPM
