Product Description

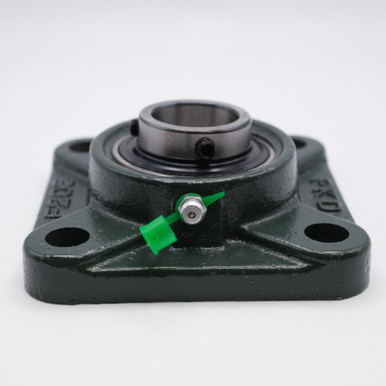

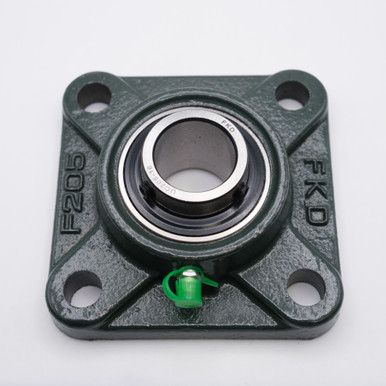

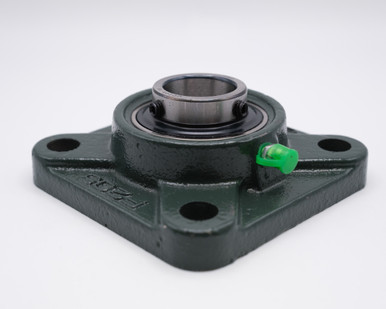

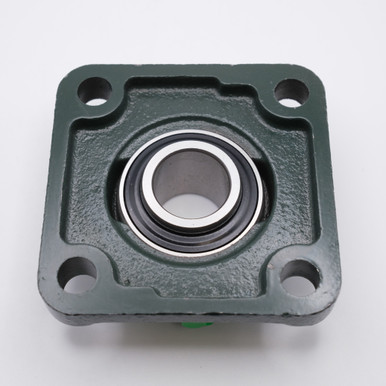

UCF205 bearing is 4-Bolt Flange Bearing containing a wide inner ring with two set screws for the attachment of the shaft. This 4-Bolt Flange Bearing has a combination of set screw chrome steel inserts with a slinger seal design and a unique cast iron 4-Bolt Flange housing with an anti-rotation device.
The UCF200 Series 4-Bolt Flange Bearing is mainly applied on the occasion that the side which is vertical to the axis is fixed by 4 bolts. Its fixed mode is the same with UCF205 Pillow Block Bearing and widely used in machinery.
This flange bearing is commonly used for HVAC, Coveying, Processing, Feed Mill, Agricultural and many other Industrial Applications.
Match #: SF-25, UCF205, UCF205, UCF205-25E
Product Videos
Custom Field
Bore Size 25mm
Bolt Hole to Bolt Hole 2-3/4" (70mm)
Static Load 1,809 lbs
Dynamic Load 3,154 lbs
Housing Material Cast Iron
Bearing Material Chrome Steel
Lubrication Chevron SRI-2 Grease
Interchange Numbers SF-25, UCF205, UCF205, UCF205-25E
Speed Limit 6,250 RPM
