Product Description

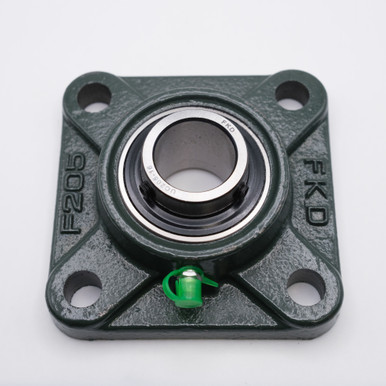

UCF205-14 bearing is 4-Bolt Flange Bearing containing a wide inner ring with two set screws for the attachment of the shaft. This 4-Bolt Flange Bearing has a combination of set screw chrome steel inserts with a slinger seal design and a unique cast iron 4-Bolt Flange housing with an anti-rotation device.
The UCF200 Series 4-Bolt Flange Bearing is mainly applied on the occasion that the side which is vertical to the axis is fixed by 4 bolts. Its fixed mode is the same with UCF205-14 Pillow Block Bearing and widely used in machinery.
This flange bearing is commonly used for HVAC, Coveying, Processing, Feed Mill, Agricultural and many other Industrial Applications.
Match #: SF-7/8, UCF205-14, UCF205-14, UCF205-7/8E
Product Videos
Custom Field
Bore Size 7/8"
Bolt Hole to Bolt Hole 2-3/4" (70mm)
Static Load 1,809 lbs
Dynamic Load 3,154 lbs
Housing Material Cast Iron
Bearing Material Chrome Steel
Lubrication Chevron SRI-2 Grease
Interchange Numbers SF-7/8, UCF205-14, UCF205-14, UCF205-7/8E
Speed Limit 6,250 RPM
