  • TP-SUEFL208-24 Food Grade Thermoplastic 2-Bolt Flanged Mounted Block Unit 1-1/2" Bore
  • TP-SUEFL208-24 2-Bolt Flanged Mounted Block Unit 1-1/2" Bore Cap View
  • TP-SUEFL208-24 2-Bolt Flanged Mounted Block Unit 1-1/2" Bore Open Cap View
  • TP-SUEFL208-24 2-Bolt Flanged Mounted Block Unit 1-1/2" Bore Right Angled View

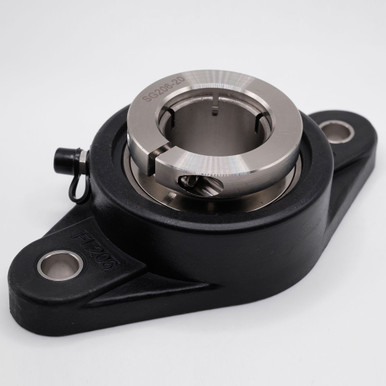

  • TP-SUEFL208-24 2-Bolt Flanged Mounted Block Unit 1-1/2" Bore Left Angled View
  • TP-SUEFL208-24 2-Bolt Flanged Mounted Block Unit 1-1/2" Bore Back Right Angled View
  • TP-SUEFL208-24 2-Bolt Flanged Mounted Block Unit 1-1/2" Bore Back Left Angled View
  • TP-SUEFL208-24 2-Bolt Flanged Mounted Block Unit 1-1/2" Bore Cap View TP-SUEFL208-24 2-Bolt Flanged Mounted Block Unit 1-1/2" Bore Open Cap View TP-SUEFL208-24 2-Bolt Flanged Mounted Block Unit 1-1/2" Bore Right Angled View TP-SUEFL208-24 2-Bolt Flanged Mounted Block Unit 1-1/2" Bore Left Angled View TP-SUEFL208-24 2-Bolt Flanged Mounted Block Unit 1-1/2" Bore Back Right Angled View TP-SUEFL208-24 2-Bolt Flanged Mounted Block Unit 1-1/2" Bore Back Left Angled View

    TP-SUEFL208-24 Food Grade Thermoplastic 2-Bolt Flanged Mounted Block Unit 1-1/2" Bore

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    (You save )
    Write a Review
    SKU:
    TP-SUEFL208-24
    Minimum Purchase:
    100 units
    Inner Diameter:
    1-1/2"
    Overall Length:
    176mm
    Overall Height:
    101mm
    Bolt Hole to Bolt Hole:
    144mm
    Housing Material:
    Thermoplastic
    Insert Material:
    Stainless Steel AISI-440C
    Lubrication:
    Food Grade Grease
    Static Load:
    4,078 lbf
    Dynamic Load:
    6,634 lbf
    Speed Limit:
    4,000 RPM
    Country of Origin:
    China
    Interchange Numbers:
    TP-SUEF208-24, TP-SSUEF208-24

    Adding to cart… category.add_cart_announcement

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    • Facebook
    • Email
    • Print
    • X
    • Pinterest
    • Overview

    Product Description

    TP-SUEF208-24 2-Bolt Thermoplastic Flanged Mounted Block Unit

    Key Features

    TP-SUEF208-24 is a Food Grade Thermoplastic 2-Bolt Oval Flanged Mounted Block Unit manufactured with a stainless steel concentric locking insert ball bearing. Concentric Locking Bearings are capable of eliminating shaft offset, reduce noise and vibration, and keep rotational balance constant during operation. This style of locking collar is easy to remove and reposition and since it doesn't mar or score the shaft, concentric locking insert bearings are easier and less expensive to service. This unit is a combination of a 2-Bolt Oval Thermoplastic Housing and a Stainless Steel Insert Bearing which makes this unit highly resistant to corrosion from moisture and each unit is pre-lubricated with Food Grade Grease, making them ready for immediate use in food & beverage applications.

    Applications / Industries

    TP-SUEF208-24 2-Bolt Thermoplastic Mounted Blocks are used in a variety of food grade applications such as Beverage Production and Bottling Machines, Conveyor Systems, Milk Separators, Dairy Production Lines, Meat and Poultry Processing Machinery, Pulleys, Pumps, Compressors, Packaging Machinery, Labeling Machines, Canning Machines, among others.

    Product Videos

    Custom Field

    Inner Diameter 1-1/2"
    Overall Length 176mm
    Overall Height 101mm
    Bolt Hole to Bolt Hole 144mm
    Housing Material Thermoplastic
    Insert Material Stainless Steel AISI-440C
    Lubrication Food Grade Grease
    Static Load 4,078 lbf
    Dynamic Load 6,634 lbf
    Speed Limit 4,000 RPM
    Country of Origin China
    Interchange Numbers TP-SUEF208-24, TP-SSUEF208-24

    Product Reviews

    Write a Review

    Write a Review

    ×

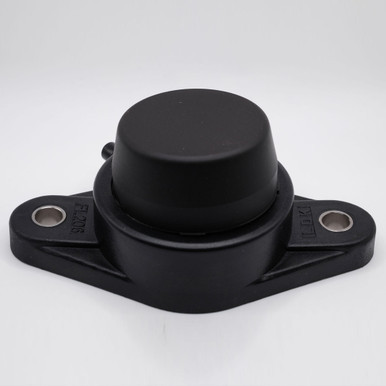

    TP-SUEFL208-24 2-Bolt Flanged Mounted Block Unit 1-1/2" Bore Cap View
    TP-SUEFL208-24 Food Grade Thermoplastic 2-Bolt Flanged Mounted Block Unit 1-1/2" Bore

    ×
