Thermoplastic Bearing Units

TP-SUEF208-24 Food Grade Thermoplastic 4-Bolt Flanged Mounted Block Unit 1-1/2" Bore

SKU: TP-SUEF208-24
  • Free shipping on most orders
  • Ships from Glendale, CA
  • TP-SUEF208-24 4-Bolt Flanged Mounted Block Unit 1-1/2" Bore Collar View
  • TP-SUEF208-24 4-Bolt Flanged Mounted Block Unit 1-1/2" Bore Top View
  • TP-SUEF208-24 4-Bolt Flanged Mounted Block Unit 1-1/2" Bore Back Right View
  • TP-SUEF208-24 4-Bolt Flanged Mounted Block Unit 1-1/2" Bore Back Left View

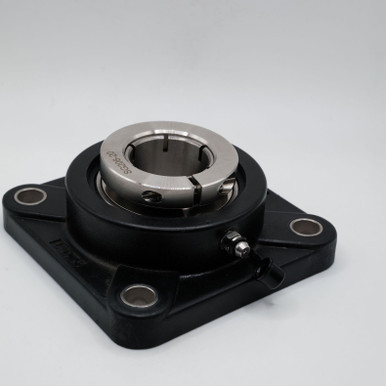

  • TP-SUEF208-24 4-Bolt Flanged Mounted Block Unit 1-1/2" Bore Side View
  • TP-SUEF208-24 4-Bolt Flanged Mounted Block Unit 1-1/2" Bore Cap View
  • TP-SUEF208-24 4-Bolt Flanged Mounted Block Unit 1-1/2" Bore Top Cap View

    • Minimum order: 100 pieces Quotes for this part start at 100 pieces.

    Minimum order: 100 units

    Your quote includes pricing and lead time.

    How ordering works

    1. Request a quote for this partChoose a quantity of 100 or more.
    2. Get pricing and lead time by emailYour quote is emailed to you.
    3. Click “Proceed to checkout”Use the button in that email to place your order.
    Specifications

    Dimensions

    Bore (inner diameter)1-1/2"
    Overall Length130mm
    Bolt-hole spacing102mm

    Construction

    Bearing MaterialStainless Steel AISI-440C
    Housing MaterialThermoplastic
    LubricationFood Grade Grease
    Country of OriginChina

    Performance

    Static Load4,078 lbs
    Dynamic Load6,634 lbs
    Speed Limit4,000 RPM

    Interchange numbers 2

    • TP-SUEF208-24
    • TP-SSUEF208-24
    Ordering & returns
    Lead time

    Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

    Before you order

    Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

    Shipping and returns

    Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

    Description

    TP-SUEF208-24 Food Grade Thermoplastic Flanged Mounted Block Unit

    Key Features

    TP-SUEF208-24 is a Food Grade Thermoplastic Square Flanged Mounted Block Unit manufactured with a stainless steel concentric locking insert ball bearing. Concentric Locking Bearings are capable of eliminating shaft offset, reduce noise and vibration, and keep rotational balance constant during operation. This style of locking collar is easy to remove and reposition and since it doesn't mar or score the shaft, concentric locking insert bearings are easier and less expensive to service. This combination of Thermoplastic Housing and Stainless Steel Insert Bearing makes this unit highly resistant to corrosion from moisture and each unit is pre-lubricated with Food Grade Grease, making them ready for immediate use in food & beverage applications.

    Applications / Industries

    TP-SUEF208-24 Thermoplastic Mounted Blocks are used in a variety of food grade applications such as Beverage Production and Bottling Machines, Conveyor Systems, Milk Separators, Dairy Production Lines, Meat and Poultry Processing Machinery, Pulleys, Pumps, Compressors, Packaging Machinery, Labeling Machines, Canning Machines, among others.
