Pillow Block Bearings

SUCKP206-20 Nickel Plated Pillow Block Unit with Stainless Steel Insert 1-1/4" Bore

SKU: SUCKP206-20
  • Free shipping on most orders
  • Ships from Glendale, CA

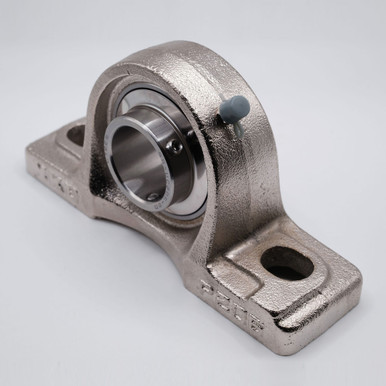

  • SUCKP206-20 Pillow Block Unit 1-1/4" Bore Right Angled View
  • SUCKP206-20 Pillow Block Unit 1-1/4" Bore Left Angled View

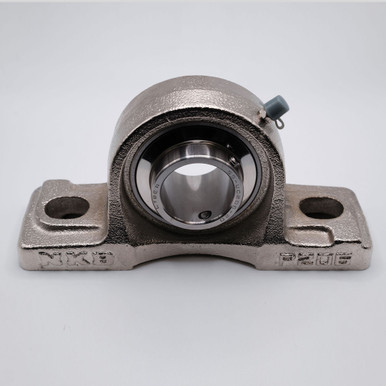

  • SUCKP206-20 Pillow Block Unit 1-1/4" Bore Front View

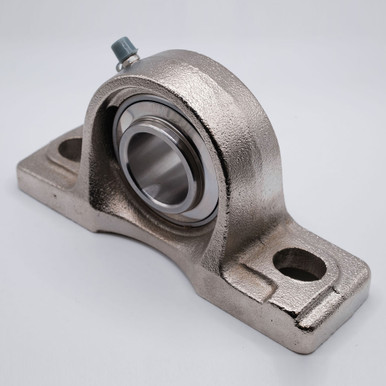

  • SUCKP206-20 Pillow Block Unit 1-1/4" Bore Back Right Angled View
  • SUCKP206-20 Pillow Block Unit 1-1/4" Bore Back Left Angled View
  • SUCKP206-20 Pillow Block Unit 1-1/4" Bore Back View
  • SUCKP206-20 Pillow Block Unit 1-1/4" Bore Bottom View

    • Minimum order: 100 pieces Quotes for this part start at 100 pieces.

    Minimum order: 100 units

    Your quote includes pricing and lead time.

    How ordering works

    1. Request a quote for this partChoose a quantity of 100 or more.
    2. Get pricing and lead time by emailYour quote is emailed to you.
    3. Click “Proceed to checkout”Use the button in that email to place your order.
    Specifications

    Dimensions

    Bore (inner diameter)1-1/4"
    Overall Length160mm
    Overall Height82mm
    Base to center height42.9mm
    Bolt-hole spacing121mm

    Construction

    Bearing MaterialStainless Steel AISI-440C
    Housing MaterialNickel Plated
    LubricationChevron SRI-2 Grease
    Country of OriginChina

    Performance

    Static Load2,020 lbs
    Dynamic Load3,710 lbs
    Speed Limit5,300 RPM

    Interchange numbers 2

    • SUCKP206-20
    • SSUCKP206-20
    Ordering & returns
    Lead time

    Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

    Before you order

    Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

    Shipping and returns

    Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

    Description

    SUCKP206-20 Nickel Plated Pillow Block Unit

    Key Features

    SUCKF206-20 is a high quality Nickel Plated Pillow Block Unit. The insert bearing used in this unit is stainless steel and has a wide inner ring with two set screws for attaching to the shaft. This bearings nickel plated housing and stainless steel insert provides this bearing with ample corrosion resistance, making it ideal for applications requiring contact with moisture and other corrosive materials. Our mounted block bearings are pre-lubricated with grease to allow it to be ready to use upon arrival.

    Applications / Industries

    SUCKF206-20 Mounted Blocks are used in a variety of applications such as Agricultural Equipment, Automotive Industry, Construction Equipment, Pump Systems, Sporting and Consumer Goods, Conveyor Systems and Fan Assemblies, Material Handling Machinery, HVAC Systems, Feed Mills, Chemical Processing and other Industrial Equipment.
