Pillow Block Bearings

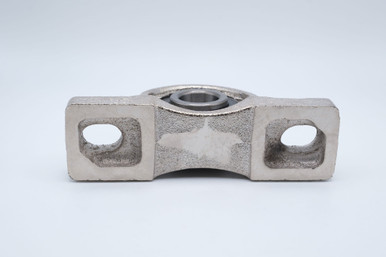

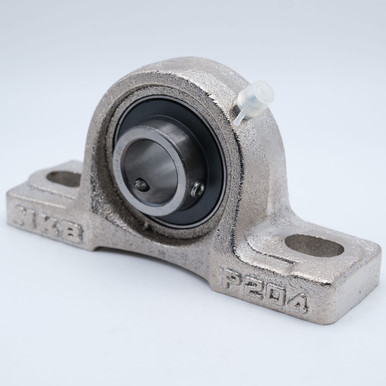

HCKP208-24 Nickel Plated Pillow Block Unit Bearing 1-1/2" Bore

SKU: HCKP208-24
  • Free shipping on most orders
  • Ships from Glendale, CA
  • HCKP208-24 Nickel Plated Pillow Block Unit Bearing 1-1/2" Bore
  • HCKP208-24 Nickel Plated Pillow Block Unit Bearing 1-1/2" Bore
  • HCKP208-24 Nickel Plated Pillow Block Unit Bearing 1-1/2" Bore
  • HCKP208-24 Nickel Plated Pillow Block Unit Bearing 1-1/2" Bore
  • HCKP208-24 Nickel Plated Pillow Block Unit Bearing 1-1/2" Bore
  • HCKP208-24 Nickel Plated Pillow Block Unit Bearing 1-1/2" Bore

    • Minimum order: 100 pieces Quotes for this part start at 100 pieces.

    Minimum order: 100 units

    Your quote includes pricing and lead time.

    How ordering works

    1. Request a quote for this partChoose a quantity of 100 or more.
    2. Get pricing and lead time by emailYour quote is emailed to you.
    3. Click “Proceed to checkout”Use the button in that email to place your order.
    Specifications

    Dimensions

    Bore (inner diameter)1-1/2"
    Overall Length180mm
    Overall Height99mm
    Base to center height49.2mm
    Bolt-hole spacing137mm

    Construction

    Bearing MaterialChrome Steel SAE-52100
    LubricationChevron SRI-2 Grease
    Country of OriginChina

    Performance

    Static Load4,078 lbs
    Dynamic Load6,634 lbs
    Speed Limit4,000 RPM

    Interchange numbers 2

    • HCKP208-24
    • HCKP-208-24
    Ordering & returns
    Lead time

    Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

    Before you order

    Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

    Shipping and returns

    Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

    Description

    HCKP208-24 Pillow Block Unit

    Key Features

    HCKP208-24 has a combination of a Nickel pillow block housing with an anti-rotation device with self-alignment and an eccentric locking collar chrome steel insert bearing. HCKP208-24 is a Nickel Plated Pillow Block Unit with the standard base to center height with a grease fitting to allow for re-lubrication of the bearing. The Insert Bearing is self aligning for standard load capacity and features an eccentric cam locking collar with set screws for the attachment of the shaft. The Nickel Plated Housing provides the bearing with corrosion resistance from moisture and other corrosive materials. Our Mounted Block Units are pre-lubricated with grease, allowing it to be ready for immediate use upon arrival.

    Applications / Industries

    HCKP208-24 Mounted Blocks are used in a variety of applications such as Agricultural Equipment, Automotive Industry, Pumps, Sporting and Consumer Goods, Construction Equipment, Manufacturing Equipment, Conveyor Systems, Fan Assemblies, and both Light and Heavy Industrial Manufacturing.
