• SSBSLF205-16 2-Bolt Flange Bearing Unit 1" Bore Front Right Angled View

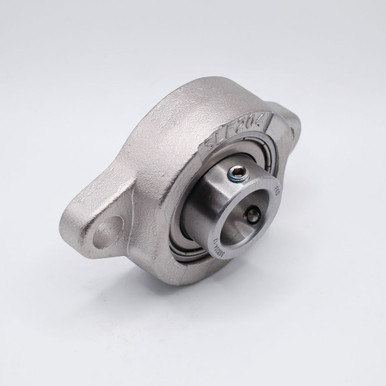

  • SSBSLF205-16 2-Bolt Flange Bearing Unit 1" Bore Front Left Angled View

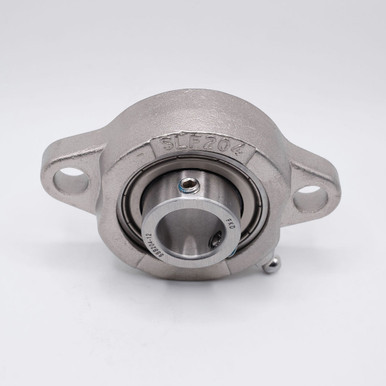

  • SSBSLF205-16 2-Bolt Flange Bearing Unit 1" Bore Front View
  • SSBSLF205-16 2-Bolt Flange Bearing Unit 1" Bore Flat Grease Feed View
  • SSBSLF205-16 2-Bolt Flange Bearing Unit 1" Bore Flat Top View

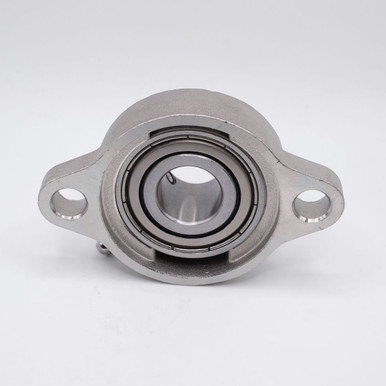

  • SSBSLF205-16 2-Bolt Flange Bearing Unit 1" Bore Back View

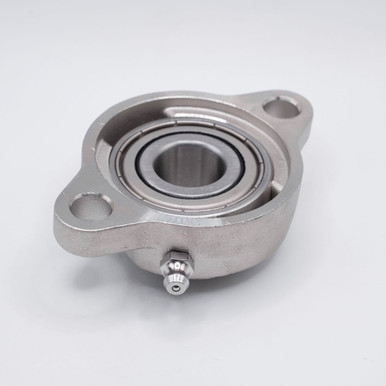

  • SSBSLF205-16 2-Bolt Flange Bearing Unit 1" Bore Flat Bottom View

    • SSBSLF205-16 2-Bolt Flange Bearing Unit 1" Bore

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Wholesale Pricing By Quote — Request a Quote
    Write a Review
    SKU:
    SSBSLF205-16
    Minimum Purchase:
    100 units
    Inner Diameter:
    1"
    Overall Length:
    95mm
    Overall Height:
    64mm
    Bolt Hole to Bolt Hole:
    76mm
    Housing Material:
    Stainless Steel AISI-440C
    Bearing Material:
    Stainless Steel AISI-440C
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    1,810 lbs
    Dynamic Load:
    3,154 lbs
    Speed Limit:
    6,250 RPM
    Country of Origin:
    China
    Interchange Numbers:
    SBLF205-16G, FHSLF205-16G, BLF205-16GKP8G5, SBLF20516G, SBLF205 16G, ASFD205-016, BLFL5-16
    Request a Quote for 100+ Units

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    SSBSLF205-16 2-Bolt Flange Bearing Unit

    Key Features

    SSBSLF205-16 is an SBLF200 Series 2-Bolt Flange Bearing Unit featuring a narrow inner ring as well as two Set Screws on the extended end of the insert, which can be tightened when positioned onto a shaft. This SSBSLF205-16 Bearing Unit has a combination of a stainless steel SB200 insert set screw ball bearing and an oval stainless steel 2-Bolt flange housing with grease feeding access allowing for re-lubrication of the insert. Our flange bearing units are pre-lubricated with grease ensuring they are ready for use upon arrival.

    Applications / Industries

    SSBSLF205-16 2-Bolt Flange Bearing Units are widely used in various Consumer Goods, HVAC Systems, Manufacturing Equipment, Agricultural Equipment, Automotive Components, Conveyor Systems, Film Processing Machinery, Fitness Equipment, Fan Assemblies, Pumps, Farm Machinery, Feed Mill, among others.

    Product Videos

    Custom Field

    Inner Diameter 1"
    Overall Length 95mm
    Overall Height 64mm
    Bolt Hole to Bolt Hole 76mm
    Housing Material Stainless Steel AISI-440C
    Bearing Material Stainless Steel AISI-440C
    Lubrication Chevron SRI-2 Grease
    Static Load 1,810 lbs
    Dynamic Load 3,154 lbs
    Speed Limit 6,250 RPM
    Country of Origin China
    Interchange Numbers SBLF205-16G, FHSLF205-16G, BLF205-16GKP8G5, SBLF20516G, SBLF205 16G, ASFD205-016, BLFL5-16
