• SBLF205-16 2-Bolt Flange Bearing Unit 1" Bore
  • SBLF205 16G 2-Bolt Flange Bearing Unit 1" Bore
  • SBLF205 16G 2 Bolt Flange Bearing Unit 1" Bore

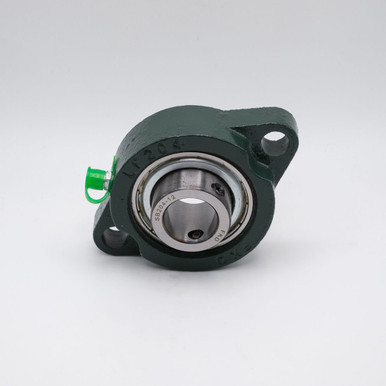

  • SBLF205-16 Flange Bearing Unit 1" Bore
  • SBLF205-16 2-Bolt Flange Bearing Unit 1" Bore Back View
  • SBLF205-16 2-Bolt Flange Bearing Unit 1" Bore Side View

    • SBLF205-16 2-Bolt Flange Bearing Unit 1" Bore

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    SBLF205-16
    Minimum Purchase:
    100 units
    Inner Diameter:
    1"
    Overall Length:
    3-47/64"
    Overall Height:
    2-33/64"
    Bolt Hole to Bolt Hole:
    2-63/64"
    Housing Material:
    Cast Iron
    Insert Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    1,810 lbf
    Dynamic Load:
    3,154 lbf
    Speed Limit:
    6,250 RPM
    Country of Origin:
    China
    Interchange Numbers:
    SBLF205-16G, FHSLF205-16G Peer, BLF205-16GKP8G5 FYH, SBLF20516G, SBLF205 16G SKF, ASFD205-016 NTN, BLFL5-16 AMI

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    SBLF205-16 2-Bolt Flange Bearing Unit

    Key Features

    SBLF205-16 is an SBLF200 Series 2-Bolt Flange Bearing Unit featuring a shorter bolt hole distance as well as two Set Screws on the extended end of the insert, which can be tightened when positioned onto a shaft. This SBLF205-16 Bearing Unit has a combination of a chrome steel SB200 insert set screw ball bearing, and an oval cast iron 2-Bolt flange housing with grease feeding access allowing for re-lubrication of the insert. Our flange bearing units are pre-lubricated with grease ensuring they are ready for use upon arrival.

    Applications / Industries

    SBLF205-16 2-Bolt Flange Bearing Units are widely used in various Consumer Goods, HVAC Systems, Manufacturing Equipment, Agriculture, Automotive, Conveyor Systems, Film Processing Machinery, Fitness Equipment, Fan Assemblies, Pumps, Farm Machinery, Conveyor, Feed Mill, among other Industrial Equipment.

    Product Videos

    Custom Field

    Inner Diameter 1"
    Overall Length 3-47/64"
    Overall Height 2-33/64"
    Bolt Hole to Bolt Hole 2-63/64"
    Housing Material Cast Iron
    Insert Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 1,810 lbf
    Dynamic Load 3,154 lbf
    Speed Limit 6,250 RPM
    Country of Origin China
    Interchange Numbers SBLF205-16G, FHSLF205-16G Peer, BLF205-16GKP8G5 FYH, SBLF20516G, SBLF205 16G SKF, ASFD205-016 NTN, BLFL5-16 AMI
