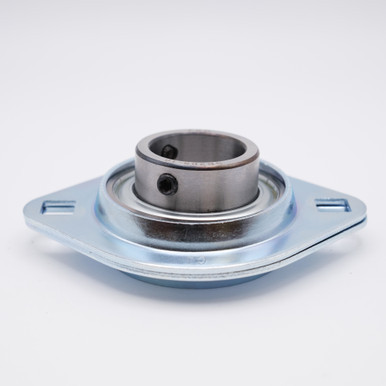

  • SBPFL205-15 Pressed Steel Two Bolt Flange Set Screw Mounted Bearing 15/16" Bore Front View
  • SBPFL205-15 Pressed Steel Two Bolt Flange Set Screw Mounted Bearing 15/16" Bore Disassembled View
  • SBPFL205-15 Pressed Steel Two Bolt Flange Set Screw Mounted Bearing 15/16" Bore Back View
  • SBPFL205-15 Pressed Steel Two Bolt Flange Set Screw Mounted Bearing 15/16" Bore Disassembled View

    • SBPFL205-15 Pressed Steel Two Bolt Flange Set Screw Mounted Bearing 15/16" Bore

    Write a Review
    SKU:
    SBPFL205-15
    Minimum Purchase:
    100 units
    Bore Size:
    15/16"
    Bolt Hole to Bolt Hole:
    2-63/64" (76mm)
    Overall Width:
    2-51/64" (71mm)
    Static Load:
    1,750 lbs
    Dynamic Load:
    3,140 lbs
    Housing Material:
    Pressed Steel
    Bearing Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Interchange Numbers:
    ASPFL 205-015, BPFL 5-15
    Speed Limit:
    6,250 RPM

    Product Description

    SBPFL200 Series Press Steel Oval Shape 2 Bolt Flange Light Duty Housing with Set Screw Locking Collar Ball Bearing in Unit, Pre Lubricated with Grease

    SBPFL200 Pressed Steel Oval 2-Bolt Flange Bearing Series contains pressed steel oval 2-bolt flange bearing housing and a light duty set screw locking insert bearing. This specific bearing is designated for light to medium duty applications; they can be bolted to sheet metal frameworks and timber if necessary.

    Common usage for SBPFL200 Series Pressed Steel Oval 2-Bolt Flange Bearing: Automotive, Agricultural, Conveyor, Fan Assemblies, Light to Heavy Industrial Use, and Engineering Needs.

    Match #: ASPFL 205-015, BPFL 5-15

    Product Videos

    Custom Field

    Bore Size 15/16"
    Bolt Hole to Bolt Hole 2-63/64" (76mm)
    Overall Width 2-51/64" (71mm)
    Static Load 1,750 lbs
    Dynamic Load 3,140 lbs
    Housing Material Pressed Steel
    Bearing Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Interchange Numbers ASPFL 205-015, BPFL 5-15
    Speed Limit 6,250 RPM
