Product Description

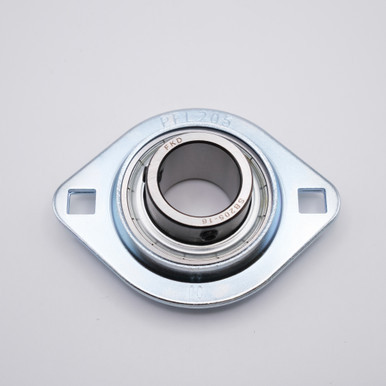

SBPFL200 Series Press Steel Oval Shape 2 Bolt Flange Light Duty Housing with Set Screw Locking Collar Ball Bearing in Unit, Pre Lubricated with Grease
SBPFL200 Pressed Steel Oval 2-Bolt Flange Bearing Series contains pressed steel oval 2-bolt flange bearing housing and a light duty set screw locking insert bearing. This specific bearing is designated for light to medium duty applications; they can be bolted to sheet metal frameworks and timber if necessary.
Common usage for SBPFL200 Series Pressed Steel Oval 2-Bolt Flange Bearing: Automotive, Agricultural, Conveyor, Fan Assemblies, Light to Heavy Industrial Use, and Engineering Needs.
Match #: RATY1”, ASPFL 205-100, BPFL 5-16
Product Videos
Custom Field
Bore Size 1"
Bolt Hole to Bolt Hole 2-63/64" (76mm)
Overall Width 2-51/64" (71mm)
Static Load 1,750 lbs
Dynamic Load 3,140 lbs
Housing Material Pressed Steel
Bearing Material Chrome Steel
Lubrication Chevron SRI-2 Grease
Interchange Numbers RATY1”, ASPFL 205-100, BPFL 5-16
Speed Limit 6,250 RPM
