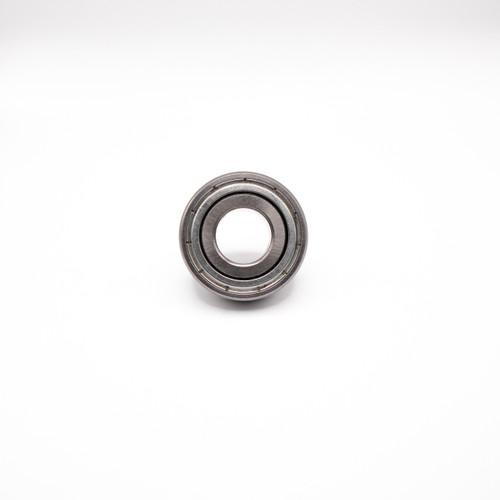

• SB203 Crowned Outer Insert Bearing with Set Screw 17x40x12mm Front Oil Hole View
  • SB203 Crowned Outer Insert Bearing with Set Screw 17x40x12mm Back View
  • SB203 Crowned Outer Insert Bearing with Set Screw 17x40x12mm Side View

    • SB203 Insert Ball Bearing 17x40x22

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Wholesale Pricing By Quote — Request a Quote
    Write a Review
    SKU:
    SB203
    Minimum Purchase:
    100 units
    Inner Diameter:
    17mm
    Outer Diameter:
    40mm
    Outer Race Width:
    12mm
    Inner Race Width:
    22mm
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    1,060 lbs
    Dynamic Load:
    2,140 lbs
    Speed Limit:
    8,800 RPM
    Interchange Numbers:
    FHS203, B3, SB203, AS203
    Request a Quote for 100+ Units

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    SB200 Bearing Series Set Screw Insert Ball Bearing Sealed and Pre-Lubricated with Grease

    SB200 Insert Bearing Series has a combination of a standard lubrication feature that has a drilled hole in the groove on the locking collar and to make things more efficient the drilled oil hole opposite to the collar to make it interchangeable with the different manufactures. This Insert Bearing is self aligning for standard load capacity.

    Match #: FHS203, B3, SB203, SB203, AS203

    Product Videos

    Custom Field

    Inner Diameter 17mm
    Outer Diameter 40mm
    Outer Race Width 12mm
    Inner Race Width 22mm
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Static Load 1,060 lbs
    Dynamic Load 2,140 lbs
    Speed Limit 8,800 RPM
    Interchange Numbers FHS203, B3, SB203, AS203
