2 Bolt Flange Bearings

SALF206-20 Cast Iron Flanged Bearing with Eccentric Locking Collar 1-1/4" Bore

SKU: SALF206-20
  • Free shipping on most orders
  • Ships from Glendale, CA

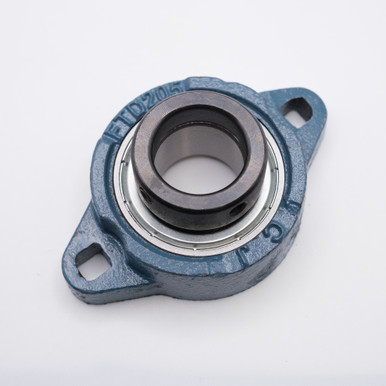

  • SALF206-20 Cast Iron Flanged Bearing 1-1/4 Bore Top View
  • SALF206-20 Cast Iron Flanged Bearing 1-1/4 Bore Side View
  • SALF206-20 Cast Iron Flanged Bearing 1-1/4 Bore Side View
  • SALF206-20 Cast Iron Flanged Bearing 1-1/4 Bore Bottom View

    • Minimum order: 100 pieces Quotes for this part start at 100 pieces.

    Minimum order: 100 units

    Your quote includes pricing and lead time.

    How ordering works

    1. Request a quote for this partChoose a quantity of 100 or more.
    2. Get pricing and lead time by emailYour quote is emailed to you.
    3. Click “Proceed to checkout”Use the button in that email to place your order.
    Specifications

    Dimensions

    Bore (inner diameter)1-1/4"
    Overall Length4-29/64"
    Overall Height2-63/64"
    Bolt-hole spacing3-9/16"

    Construction

    Bearing MaterialChrome Steel SAE-52100
    Housing MaterialCast Iron
    LubricationChevron SRI-2 Grease
    Country of OriginChina

    Performance

    Static Load2,570 lbs
    Dynamic Load4,377 lbs
    Speed Limit5,300 RPM

    Interchange numbers 10

    • SALF206-20
    • 00-401-015
    • 4356
    • 851-SALF20620
    • 851SALF20620
    • FNR1-1/4-2R
    • SAFT20620
    • VCJT1-1/4S
    • WGTZ20L-IMP
    • WGTZ20LIMP
    Ordering & returns
    Lead time

    Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

    Before you order

    Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

    Shipping and returns

    Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

    Description

    SALF206-20 2-Bolt Cast Iron Flanged Bearing

    Key Features

    SALF206-20 is a Cast Iron 2-Bolt Flange Bearing Housing with an Anti-Rotation Device, Grease Feed Access, and an Eccentric Locking Collar Insert Ball Bearing. This unit features a machined collar with a single set screw that, when tightened, secures the position of the eccentric collar onto a shaft. This locking method does less damage to the shaft than a normal set screw locking system and is recommended for most applications except where reversing shaft rotation is involved. This unit has also been equipped with a grease feed to allow for re-lubrication if necessary. Our SALF206-20 are pre-Lubricated with Grease, ensuring they are ready for immediate use upon delivery.

    Applications / Industries

    SALF206-20 2-Bolt Flange Bearings are widely used in various Consumer Goods, HVAC Systems, Manufacturing Equipment, Agricultural Equipment, Automotive Industry, Conveyor Systems, Film Processing Machinery, Fitness Equipment, Fan Assemblies, Pump Systems, Farm Machinery, among others.
