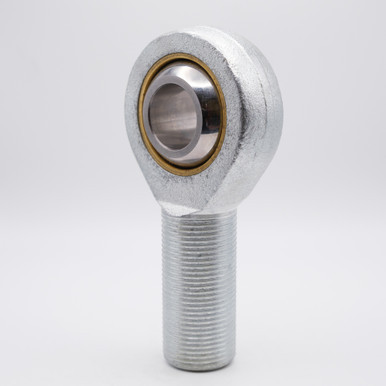

    • POSB4 Pilloball Male Rod End Bearing Right Hand Thread 1/4" Bore

    Write a Review
    SKU:
    POSB4
    Minimum Purchase:
    50 units
    Bore Size:
    1/4" (6.35mm)
    Base to Center:
    1-9/16" (39.67mm)
    Thread:
    -28UNF ( .2500")
    Overall Height:
    1-15/16" (49.20mm)
    Outer Diameter:
    3/4" (19.05mm)
    Static Load:
    1,994 lbs
    Dynamic Load:
    1,032 lbs
    Ball Material:
    Chrome Steel
    Housing Material:
    Nickel Plated
    Interchange Numbers:
    HM4, HM4G, TRE-4, TRE4N, TRE-4N, MM-4, MM-4Z, POSB4Z
    Thread Direction:
    Right Hand

    Product Description

    POSB4 Bearing is a Rod End PilloBall Insert Bearing, Right Handed Thread and Zinc Plated

    Match #: HM4, HM4G, TRE-4, TRE4N, TRE-4N, MM-4, MM-4Z, POSB4Z

    Product Videos

    Custom Field

    Bore Size 1/4" (6.35mm)
    Base to Center 1-9/16" (39.67mm)
    Thread -28UNF ( .2500")
    Overall Height 1-15/16" (49.20mm)
    Outer Diameter 3/4" (19.05mm)
    Static Load 1,994 lbs
    Dynamic Load 1,032 lbs
    Ball Material Chrome Steel
    Housing Material Nickel Plated
    Interchange Numbers HM4, HM4G, TRE-4, TRE4N, TRE-4N, MM-4, MM-4Z, POSB4Z
    Thread Direction Right Hand
