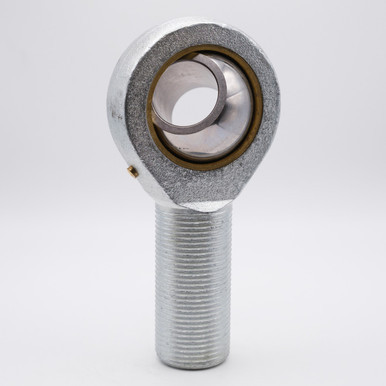

  • POS22L Rod-End Bearing 22mm Bore Angled BoreView

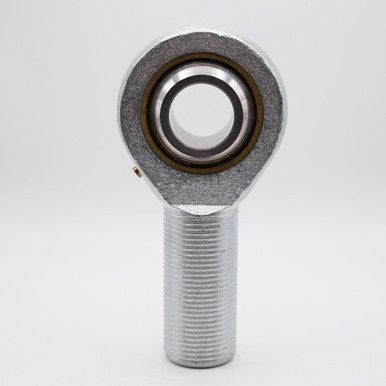

  • POS22L Rod-End Bearing 22mm Bore Front View
  • POS22L Rod-End Bearing 22mm Bore Flat View

    • POS22L 22mm Lubrication Type PilloBall Male Rod End Bearing Left Hand Thread

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    POS22L
    Minimum Purchase:
    100 units
    Bore Size:
    22mm
    Base to Center:
    84mm
    Thread:
    M22x1.5
    Overall Height:
    109mm
    Outer Diameter:
    50mm
    Static Load:
    9,375 lbs
    Dynamic Load:
    8,408 lbs
    Thread Direction:
    Left Hand
    Interchange Numbers:
    GAL22-DO, JML22M, SMP22M, CB-22M, MB-22M, MB-22MT, POS22L, POS22 L

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    POS22L Bearing is Male Zinc Plated Rod End PilloBall Insert Type with Left Handed Thread Ball Joint Bearing, Chrome Steel, Protective Coated for Corrosion Resistance

    POS22L rod-end bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. MM-M22 bearing consist of a spherical swivel with a cylindrical bore through which a bolt may pass pressed into a housing that has a threaded shank. Rod end bearings are used in applications such as steering linkages, agricultural machinery, and textile manufacturing equipment, among others.

    Match#: GAL22-DO, JML22M, SMP22M, CB-22M, MB-22M, MB-22MT, POS22L, POS22 L

    Product Videos

    Custom Field

    Bore Size 22mm
    Base to Center 84mm
    Thread M22x1.5
    Overall Height 109mm
    Outer Diameter 50mm
    Static Load 9,375 lbs
    Dynamic Load 8,408 lbs
    Thread Direction Left Hand
    Interchange Numbers GAL22-DO, JML22M, SMP22M, CB-22M, MB-22M, MB-22MT, POS22L, POS22 L
