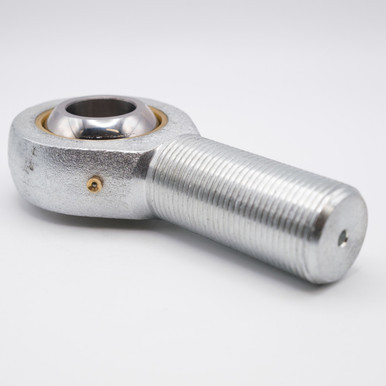

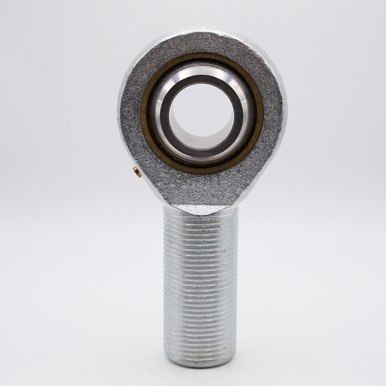

    POS12ECL 12mm Maintenance-Free Type Pilloball Male Rod End Bearing Left Hand Thread

    (You save )
    Write a Review
    SKU:
    POS12ECL
    Minimum Purchase:
    50 units
    Bore Size:
    12mm
    Base to Center:
    2-1/8" (54mm)
    Thread:
    M12x1.75
    Overall Height:
    2-23/32" (69mm)
    Outer Diameter:
    1-3/16" (30mm)
    Static Load:
    3,080 lbs
    Dynamic Load:
    5,890 lbs
    Thread Direction:
    Left Hand

    Adding to cart… category.add_cart_announcement
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview

    Product Description

    This type has superior anti-corrosion properties as the body is zinc chromate treated and the spherical inner ring is chromium plated on the sphere surface after heat treatment and grinding.

    A special PTFE liner, reinforced with copper alloy meshes, which is superior in anti-wear properties with little creep deformation is used for lining on the sliding surface of the body, and this type is maintenance- free.

    POS12ECL, which has a male thread on the body, is available.

    Product Videos

    Custom Field

    Bore Size 12mm
    Base to Center 2-1/8" (54mm)
    Thread M12x1.75
    Overall Height 2-23/32" (69mm)
    Outer Diameter 1-3/16" (30mm)
    Static Load 3,080 lbs
    Dynamic Load 5,890 lbs
    Thread Direction Left Hand
