• POS14ECL PTFE Lined Rod-End Ball Joint Bearing 14mm Bore Right Angled View
  • POS14ECL PTFE Lined Rod-End Ball Joint Bearing 14mm Bore Left Angled View

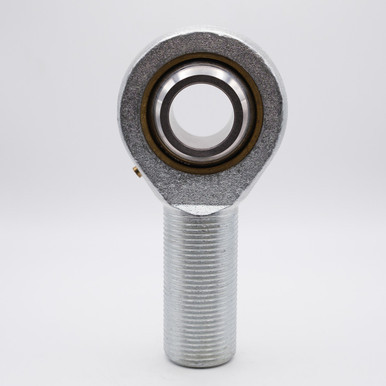

  • POS14ECL PTFE Lined Rod-End Ball Joint Bearing 14mm Bore Front View

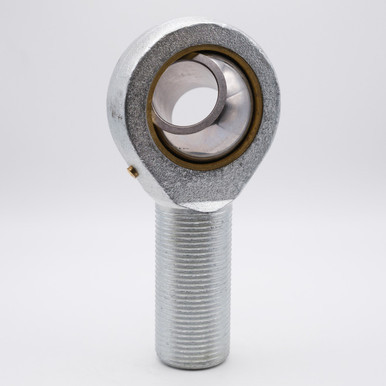

  • POS14ECL PTFE Lined Rod-End Ball Joint Bearing 14mm Bore Angled Bore View

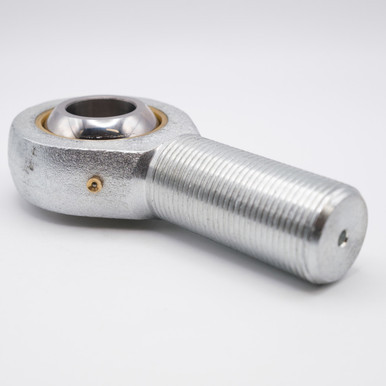

  • POS14ECL PTFE Lined Rod-End Ball Joint Bearing 14mm Bore Flat View

    • POS14ECL 14mm Maintenance-Free Type Pilloball Male Rod End Bearing Left Hand Thread

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    POS14ECL
    Minimum Purchase:
    100 units
    Bore Size:
    14mm
    Base to Center:
    2-23/64" (60mm)
    Thread:
    M14x2
    Overall Height:
    3-1/32" (77mm)
    Outer Diameter:
    1-11/32" (34mm)
    Static Load:
    3,867 lbs
    Dynamic Load:
    7,554 lbs
    Thread Direction:
    Left Hand

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    This type has superior anti-corrosion properties as the body is zinc chromate treated and the spherical inner ring is chromium plated on the sphere surface after heat treatment and grinding.

    A special PTFE liner, reinforced with copper alloy meshes, which is superior in anti-wear properties with little creep deformation is used for lining on the sliding surface of the body, and this type is maintenance- free.

    POS14ECL, which has a male thread on the body, is available.

    Product Videos

    Custom Field

    Bore Size 14mm
    Base to Center 2-23/64" (60mm)
    Thread M14x2
    Overall Height 3-1/32" (77mm)
    Outer Diameter 1-11/32" (34mm)
    Static Load 3,867 lbs
    Dynamic Load 7,554 lbs
    Thread Direction Left Hand
