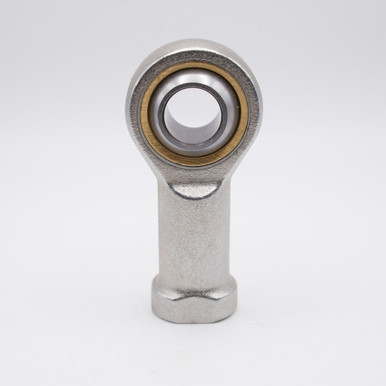

  • PHS8EC Rod-End Bearing 8mm Bore Front View
  • PHS8EC Rod-End Bearing 8mm Bore Angled Bore View

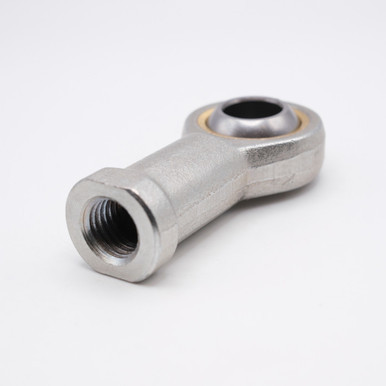

  • PHS8EC Rod-End Bearing 8mm Bore Flat Right Angled View
  • PHS8EC Rod-End Bearing 8mm Bore Flat Left Angled View
  • PHS8EC Rod-End Bearing 8mm Bore Bottom View

    • PHS8EC 8mm Maintenance-Free Type Pilloball Female Rod End Bearing Right Hand Thread

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    PHS8EC
    Minimum Purchase:
    100 units
    Bore Size:
    8mm
    Base to Center:
    1-27/64" (36mm)
    Thread:
    M8x1.25
    Overall Height:
    1-27/32" (47mm)
    Outer Diameter:
    55/64" (22mm)
    Static Load:
    1,745 lbs
    Dynamic Load:
    3,147 lbs
    Thread Direction:
    Right Hand

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    This type has superior anti-corrosion properties as the body is zinc chromate treated and the spherical inner ring is chromium plated on the sphere surface after heat treatment and grinding.

    A special PTFE liner, reinforced with copper alloy meshes, which is superior in anti-wear properties with little creep deformation is used for lining on the sliding surface of the body, and this type is maintenance-free.

    PHS8EC, which has a female thread in the body, is available.

    Product Videos

    Custom Field

    Bore Size 8mm
    Base to Center 1-27/64" (36mm)
    Thread M8x1.25
    Overall Height 1-27/32" (47mm)
    Outer Diameter 55/64" (22mm)
    Static Load 1,745 lbs
    Dynamic Load 3,147 lbs
    Thread Direction Right Hand
