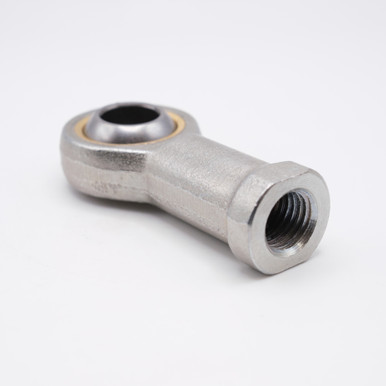

  • PHS6L Rod-End Bearing 6mm Bore Flat Left Angled View
  • PHS6L Rod-End Bearing 6mm Bore Bottom View

    • PHS6L 6mm Lubrication Type PilloBall Female Rod End Bearing Left Hand Thread

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    PHS6L
    Minimum Purchase:
    100 units
    Bore Size:
    6mm
    Base to Center:
    30mm
    Thread:
    M6x1
    Overall Height:
    39mm
    Outer Diameter:
    18mm
    Static Load:
    1,553 lbs
    Dynamic Load:
    944 lbs
    Thread Direction:
    Left Hand
    Interchange Numbers:
    GIKR06-PBL, SIKOC06ML, CG-M06, MG-M06, AG-M06, PHSA06L

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    PHS6L rod-end bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. GIKR6-PBL bearing consist of a spherical swivel with a cylindrical bore through which a bolt may pass pressed into a housing that has a threaded shank. CW-M6L Rod end bearings are used in applications such as steering linkages, agricultural machinery, and textile manufacturing equipment, among others.

    Match#: GIKR06-PBL, SIKOC06ML, CG-M06, MG-M06, AG-M06, PHSA06L

    Product Videos

    Custom Field

    Bore Size 6mm
    Base to Center 30mm
    Thread M6x1
    Overall Height 39mm
    Outer Diameter 18mm
    Static Load 1,553 lbs
    Dynamic Load 944 lbs
    Thread Direction Left Hand
    Interchange Numbers GIKR06-PBL, SIKOC06ML, CG-M06, MG-M06, AG-M06, PHSA06L
