Product Description

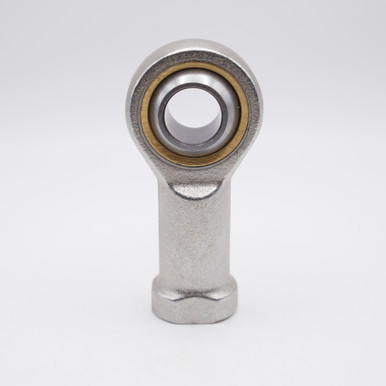

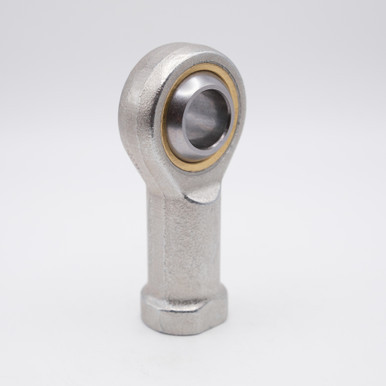

PHS4L rod-end bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. GIKR4-PBL bearing consist of a spherical swivel with a cylindrical bore through which a bolt may pass pressed into a housing that has a threaded shank. CW-M4L Rod end bearings are used in applications such as steering linkages, agricultural machinery, and textile manufacturing equipment, among others.
Match#: GIKR04-PBL, SIKOC04ML, CG-M04, MG-M04, AG-M04, PHSA04L
Product Videos
Custom Field
Bore Size 4mm
Base to Center 24mm
Thread M4x0.7
Overall Height 31mm
Outer Diameter 14mm
Static Load 1,052 lbs
Dynamic Load 558 lbs
Thread Direction Left Hand
Interchange Numbers GIKR04-PBL, SIKOC04ML, CG-M04, MG-M04, AG-M04, PHSA04L
