Product Description

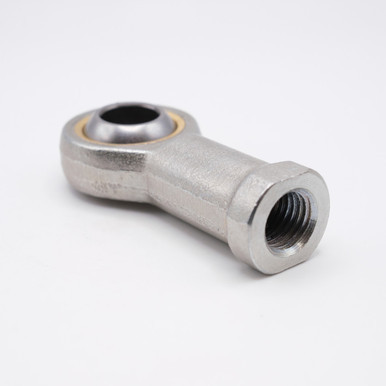

PHS30L rod-end bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. GIKR30-PBL bearing consist of a spherical swivel with a cylindrical bore through which a bolt may pass pressed into a housing that has a threaded shank. CW-M30L Rod end bearings are used in applications such as steering linkages, agricultural machinery, and textile manufacturing equipment, among others.
Match#: GIKR30-PBL, SIKOC30ML, CG-M30, MG-M30, AG-M30, PHSA30L
Product Videos
Custom Field
Bore Size 30mm
Base to Center 110mm
Thread M30x2
Overall Height 145mm
Outer Diameter 70mm
Static Load 20,727 lbs
Dynamic Load 14,006 lbs
Thread Direction Left Hand
Interchange Numbers GIKR30-PBL, SIKOC30ML, CG-M30, MG-M30, AG-M30, PHSA30L
