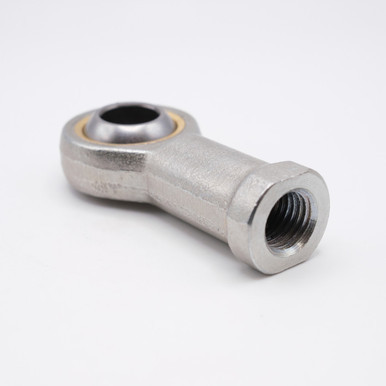

  • PHS30 Rod-End Bearing Right Hand 30mm Bore Flat Left Angled View
  • PHS30 Rod-End Bearing Right Hand 30mm Bore Bottom View

    • PHS30 30mm Lubrication Type PilloBall Female Rod End Bearing Right Hand Thread

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Wholesale Pricing By Quote — Request a Quote
    Write a Review
    SKU:
    PHS30
    Minimum Purchase:
    100 units
    Inner Diameter:
    30mm
    Base to Center:
    110mm
    Thread Size:
    M30x2
    Overall Height:
    145mm
    Outer Diameter:
    70mm
    Static Load:
    20,727 lbs
    Dynamic Load:
    14,006 lbs
    Thread Direction:
    Right Hand
    Interchange Numbers:
    GIKR30-PB, SIKOC30M, CW-M30, MW-M30, AW-M30, PHSA30
    Request a Quote for 100+ Units

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    PHS30 rod-end bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. GIKR30-PB bearing consist of a spherical swivel with a cylindrical bore through which a bolt may pass pressed into a housing that has a threaded shank. CW-M30Rod end bearings are used in applications such as steering linkages, agricultural machinery, and textile manufacturing equipment, among others.

    Match#: GIKR30-PB, SIKOC30M, CW-M30, MW-M30, AW-M30, PHSA30

    Product Videos

    Custom Field

    Inner Diameter 30mm
    Base to Center 110mm
    Thread Size M30x2
    Overall Height 145mm
    Outer Diameter 70mm
    Static Load 20,727 lbs
    Dynamic Load 14,006 lbs
    Thread Direction Right Hand
    Interchange Numbers GIKR30-PB, SIKOC30M, CW-M30, MW-M30, AW-M30, PHSA30
