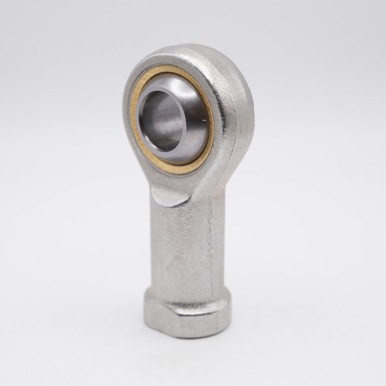

• PHS28L Rod-End Bearing 28mm Bore Right Angled View
  • PHS28L Rod-End Bearing 28mm Bore Left View
  • PHS28L Rod-End Bearing 28mm Bore Front View
  • PHS28L Rod-End Bearing 28mm Bore Angled Bore View
  • PHS28L Rod-End Bearing 28mm Bore Flat Right Angled View
  • PHS28L Rod-End Bearing 28mm Bore Flat Left Angled View
  • PHS28L Rod-End Bearing 28mm Bore Bottom View

    • PHS28L 28mm Lubrication Type PilloBall Female Rod End Bearing Left Hand Thread

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    PHS28L
    Minimum Purchase:
    100 units
    Bore Size:
    28mm
    Base to Center:
    103mm
    Thread:
    M27x2
    Overall Height:
    136mm
    Outer Diameter:
    66mm
    Static Load:
    19,558 lbs
    Dynamic Load:
    13,129 lbs
    Thread Direction:
    Left Hand
    Interchange Numbers:
    GIKR28-PBL, SIKOC28ML, CG-M28, MG-M28, AG-M28, PHSA28L

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    PHS28L rod-end bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. GIKR28-PBL bearing consist of a spherical swivel with a cylindrical bore through which a bolt may pass pressed into a housing that has a threaded shank. CW-M28L Rod end bearings are used in applications such as steering linkages, agricultural machinery, and textile manufacturing equipment, among others.

    Match#: GIKR28-PBL, SIKOC28ML, CG-M28, MG-M28, AG-M28, PHSA28L

    Product Videos

    Custom Field

    Bore Size 28mm
    Base to Center 103mm
    Thread M27x2
    Overall Height 136mm
    Outer Diameter 66mm
    Static Load 19,558 lbs
    Dynamic Load 13,129 lbs
    Thread Direction Left Hand
    Interchange Numbers GIKR28-PBL, SIKOC28ML, CG-M28, MG-M28, AG-M28, PHSA28L
