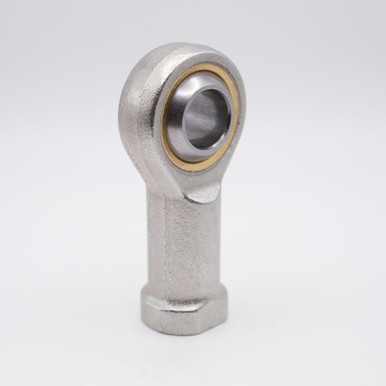

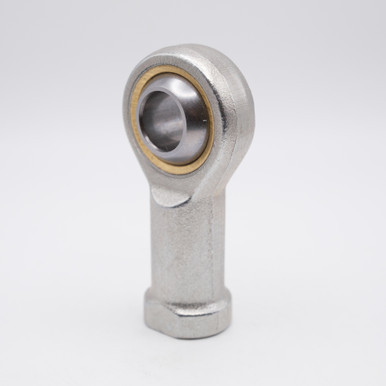

• PHS10 Rod-End Bearing Right Hand 10mm Bore Side View
  • PHS10 Rod-End Bearing Right Hand 10mm Bore Side View

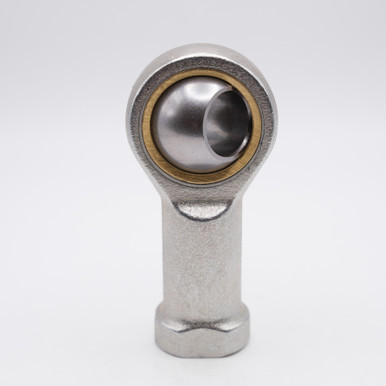

  • PHS10 Rod-End Bearing Right Hand 10mm Bore Front View
  • PHS10 Rod-End Bearing Right Hand 10mm Bore Front View

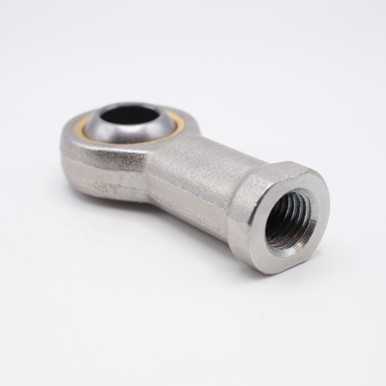

  • PHS10 Rod-End Bearing Right Hand 10mm Bore Flat View
  • PHS10 Rod-End Bearing Right Hand 10mm Bore Flat View
  • PHS10 Rod-End Bearing Right Hand 10mm Bore Bottom View

    • PHS10 10mm Lubrication Type PilloBall Female Rod End Bearing Right Hand Thread

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    PHS10
    Minimum Purchase:
    100 units
    Bore Size:
    10mm
    Base to Center:
    43mm
    Thread:
    M10x1.5
    Overall Height:
    56mm
    Outer Diameter:
    26mm
    Static Load:
    2,990 lbs
    Dynamic Load:
    2,205 lbs
    Thread Direction:
    Right Hand
    Interchange Numbers:
    GIKR10-PB, SIKOC10M, CW-M10, MW-M10, AW-M10, PHSA10

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    PHS10 rod-end bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. GIKR10-PB bearing consist of a spherical swivel with a cylindrical bore through which a bolt may pass pressed into a housing that has a threaded shank. CW-M10 Rod end bearings are used in applications such as steering linkages, agricultural machinery, and textile manufacturing equipment, among others.

    Match#: GIKR10-PB, SIKOC10M, CW-M10, MW-M10, AW-M10, PHSA10

    Product Videos

    Custom Field

    Bore Size 10mm
    Base to Center 43mm
    Thread M10x1.5
    Overall Height 56mm
    Outer Diameter 26mm
    Static Load 2,990 lbs
    Dynamic Load 2,205 lbs
    Thread Direction Right Hand
    Interchange Numbers GIKR10-PB, SIKOC10M, CW-M10, MW-M10, AW-M10, PHSA10
