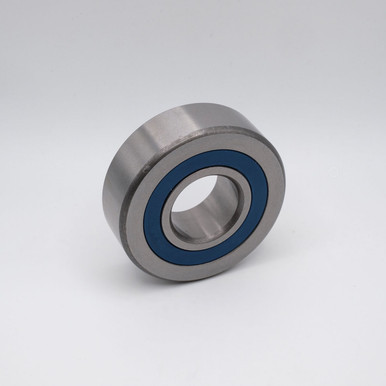

• LR5304NPPU Yoke Track Roller Ball Bearing 20x62x22.2 Angled View
  • LR5304NPPU Yoke Track Roller Ball Bearing 20x62x22.2 Angled View
  • LR5304NPPU Yoke Track Roller Ball Bearing 20x62x22.2 Angled View
  • LR5304NPPU Yoke Track Roller Ball Bearing 20x62x22.2 Angled View

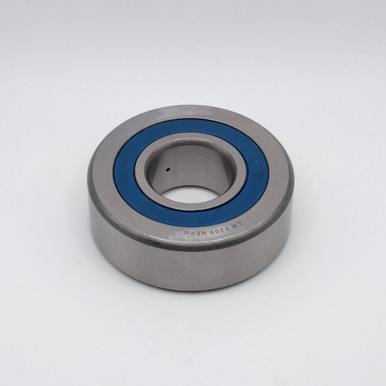

  • LR5304NPPU Yoke Track Roller Ball Bearing 20x62x22.2 Top View
  • LR5304NPPU Yoke Track Roller Ball Bearing 20x62x22.2 Bottom View

    • LR5304NPPU Yoke Track Roller Ball Bearing LR5304-2RS LR5304KPP

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    LR5304NPPU
    Minimum Purchase:
    100 units
    Inner Diameter:
    20mm
    Outer Diameter:
    62mm
    Width:
    22.2mm
    Closure Type:
    Rubber Sealed
    Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    3,260 lbf
    Dynamic Load:
    4,743 lbf
    Speed Limit:
    6,500 RPM
    Country of Origin:
    China
    Interchange Numbers:
    LR5304-2RS, LR5304 NPPU, LR5304.2RS1, LR5304PPU, LR 5304-2RS

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    LR5304NPPU Track Roller Ball Bearing

    Key Features

    LR5304NPPU is a Double-Row Bearing with both sides Rubber Sealed to protect the bearing from any corrosion or outside debris. This LR5304NPPU Track Roller Ball Bearing is designed to accommodate heavy loads in addition to shock loads. Our Track Roller Double Row Ball Bearings are pre-lubricated with Grease to allow them to be ready to use upon arrival.

    Applications / Industries

    LR5304NPPU Track Roller Ball bearings are specially designed for Guide Rails, Idler Wheels, Fiberglass Manufacturing, Metal Processing, Wood Machinery, Ship Building, Mining Equipment, among others.

    Product Videos

    Custom Field

    Inner Diameter 20mm
    Outer Diameter 62mm
    Width 22.2mm
    Closure Type Rubber Sealed
    Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 3,260 lbf
    Dynamic Load 4,743 lbf
    Speed Limit 6,500 RPM
    Country of Origin China
    Interchange Numbers LR5304-2RS, LR5304 NPPU, LR5304.2RS1, LR5304PPU, LR 5304-2RS
