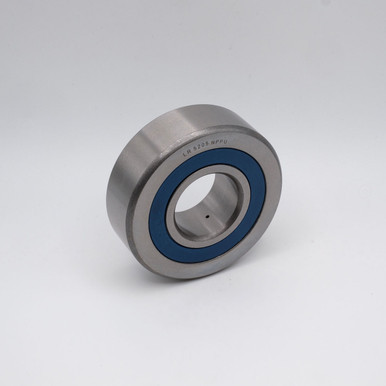

• LR5204NPPU Yoke Track Roller Ball Bearing 20x52x20.6 Angled View
  • LR5204NPPU Yoke Track Roller Ball Bearing 20x52x20.6 Angled View
  • LR5204NPPU Yoke Track Roller Ball Bearing 20x52x20.6 Angled View
  • LR5204NPPU Yoke Track Roller Ball Bearing 20x52x20.6 Angled View
  • LR5204NPPU Yoke Track Roller Ball Bearing 20x52x20.6 Top View
  • LR5204NPPU Yoke Track Roller Ball Bearing 20x52x20.6 Bottom View

    • LR5204NPPU Yoke Track Roller Ball Bearing 20x52x20.6 Sealed 305804C.2Z LR5204-2RS

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    LR5204NPPU
    Minimum Purchase:
    100 units
    Inner Diameter:
    20mm
    Outer Diameter:
    52mm
    Width:
    20.6mm
    Closure Type:
    Metal Shielded
    Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    2,360 lbf
    Dynamic Load:
    3,552 lbf
    Speed Limit:
    7,000 RPM
    Country of Origin:
    China
    Interchange Numbers:
    LR5204KPP, LR5204LLU, LR5204DDU, LR5204VV, LR5204LLB, LR5204-2NSE, LR5204-2RS, 305804 C-2Z, LR 5201 NPPU, LR 5201.2RS1

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    LR5204NPPU Yoke Track Roller Ball Bearing

    Key Features

    LR5204NPPU is a Track Roller Ball Bearing with both sides Rubber Sealed to protect the bearing from any corrosion or outside debris.This LR5204NPPU Track Roller Ball Bearing is designed to accommodate heavy loads, shock loads and facilitate system operations, allowing for greater speed and efficiency. Our Track Roller Double Row Ball Bearings are pre-lubricated with Grease to allow them to be ready to use upon arrival.

    Applications / Industries

    LR5204NPPU Track Roller Ball bearings are specially designed for Guide Rails, Idler Wheels, Fiberglass Manufacturing, Metal Processing, Wood Machinery, Ship Building, Mining Equipment, among others.

    Product Videos

    Custom Field

    Inner Diameter 20mm
    Outer Diameter 52mm
    Width 20.6mm
    Closure Type Metal Shielded
    Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 2,360 lbf
    Dynamic Load 3,552 lbf
    Speed Limit 7,000 RPM
    Country of Origin China
    Interchange Numbers LR5204KPP, LR5204LLU, LR5204DDU, LR5204VV, LR5204LLB, LR5204-2NSE, LR5204-2RS, 305804 C-2Z, LR 5201 NPPU, LR 5201.2RS1
