| Bore (inner diameter) | 12mm |
|---|---|
| Outer Diameter | 21mm |
| Length | 57mm |
| Closure Type | Rubber Sealed |
|---|---|
| Material | Chrome Steel SAE-52100 |
| Lubrication | Light Oil |
| Country of Origin | China |
| Static Load | 353 lbs |
|---|---|
| Dynamic Load | 183 lbs |
Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.
Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.
Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

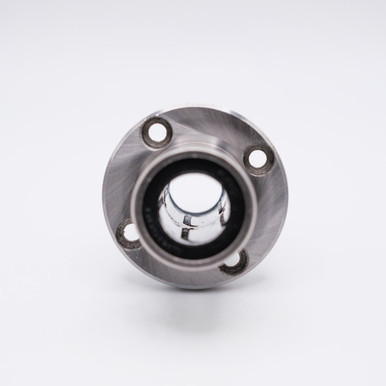

12mm bore LMFC12UU Center Mount Round Flange Slide Bush
LMFC12UU bearing is Precision Linear Motion Flanged Ball Bushing Bearing, The retainer material is resin, the bearing is sealed on both sides and ready to use with Grease or Oil lubrication which is not included.
Applications: LMFC12UU Linear bearings can be used in a variety of different applications including Lab Equipment, Packaging Equipment, CNC Machinery, Robotic Equipment. Electronics, Appliances, Furniture, Automation Machinery, among others.
Flanged Linear bearings or Flanged linear bushings are high-precision bearings that provides smooth linear motion along a shaft. They function the same as the standard linear bush, except they are integrated with a flange. Linear bush flanges come in different shapes, such as round flange (LMF) or square flange (LMK). It also consists of a cylindrical steel housing with circlip grooves, resin or steel retainer cage with steel balls and two-sided rubber seals (UU). Similarly, there are also open type (UUOP) and adjustable type (UUAJ), LME (European size) and LMB (inches) type. Stainless steel or anti-rust (M) linear bushings are also readily available. Linear bush SNB brand is amongst the most popular brands in the market with high quality.
