• LMF25UU Linear Motion Flanged Ball Bushing 25x40x59mm Top View

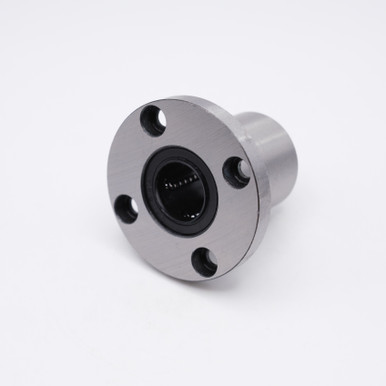

  • LMF25UU Linear Motion Flanged Ball Bushing 25x40x59mm Right Angled View

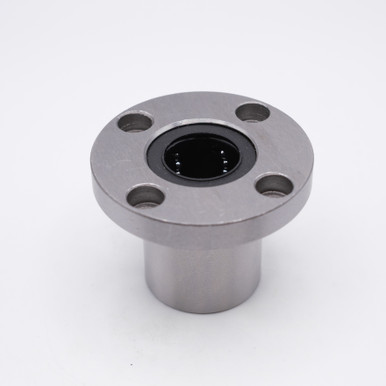

  • LMF25UU Linear Motion Flanged Ball Bushing 25x40x59mm Bottom View
  • LMF25UU Linear Motion Flanged Ball Bushing 25x40x59mm Back View

    • LMF25UU Linear Motion Flanged Ball Bushing Bearing 25x40x59

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Wholesale Pricing By Quote — Request a Quote
    Write a Review
    SKU:
    LMF25UU
    Minimum Purchase:
    100 units
    Inner Diameter:
    25mm
    Outer Diameter:
    1-37/64" (40mm)
    Length:
    2-21/64" (59mm)
    Static Load:
    3,439 lbs
    Dynamic Load:
    2,161 lbs
    Interchange Numbers:
    LMF25UU, NFED25VUU, LF25UU, SMF25GUU, LHFR25, FTB25UU, JPF25G
    Bearing Material:
    Chrome Steel
    Lubrication:
    Light Oil
    Request a Quote for 100+ Units

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    LMF25UU Linear Motion Ball Bushing Bearing with Flange Housing, Pre-Lubricated with Light Oil

    Unlike typical bearings that enable circular motion, linear bearings promote movement in a straight line. This is generally accomplished with the use of ball or roller bearings loaded onto a track that supports a surface that can be moved back and forth, such as a table. A common type of linear bearing is found in a filing cabinet, permitting the drawers to be opened and closed with ease. These bearings are perfect for linear motion on your 3D Printer, Robotic Systems, Gym Equipment, Printing Press, Motion Mechanism, CNC Machinery or any other applications.

    Match #: LMF25UU, NFED25VUU, LF25UU, SMF25GUU, LHFR25, FTB25UU, JPF25G

    Product Videos

    Custom Field

    Inner Diameter 25mm
    Outer Diameter 1-37/64" (40mm)
    Length 2-21/64" (59mm)
    Static Load 3,439 lbs
    Dynamic Load 2,161 lbs
    Interchange Numbers LMF25UU, NFED25VUU, LF25UU, SMF25GUU, LHFR25, FTB25UU, JPF25G
    Bearing Material Chrome Steel
    Lubrication Light Oil
