    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    HC210-30
    Minimum Purchase:
    100 units
    Inner Diameter:
    1-7/8"
    Outer Diameter:
    90mm
    Inner Race Width:
    24mm
    Outer Race Width:
    62.7mm
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    5,190 lbs
    Dynamic Load:
    7,900 lbs
    Speed Limit:
    3,400 RPM
    Interchange Numbers:
    NA210-30, HC210-30, UG210-30

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

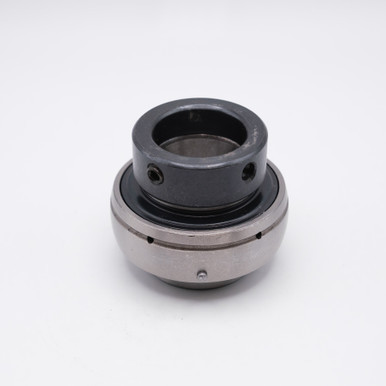

    HC200 Bearing Series is Precision Eccentric Bore Insert Ball Bearing With Locking Collar Set Screw, Sealed and Pre-Lubricated with Grease

    HC200 Insert Bearing Series has a combination of a standard lubrication feature that has a drilled hole in the groove on the locking collar and to make things more efficient the drilled oil hole opposite to the collar to make it interchangeable with the different manufactures. This Insert Bearing is self aligning for standard load capacity. This specific bearing has an eccentric cam locking collar for the attachment of the shaft.

    Match#: NA210-30, HC210-30, UG210-30

    Product Videos

    Custom Field

    Inner Diameter 1-7/8"
    Outer Diameter 90mm
    Inner Race Width 24mm
    Outer Race Width 62.7mm
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Static Load 5,190 lbs
    Dynamic Load 7,900 lbs
    Speed Limit 3,400 RPM
    Interchange Numbers NA210-30, HC210-30, UG210-30
