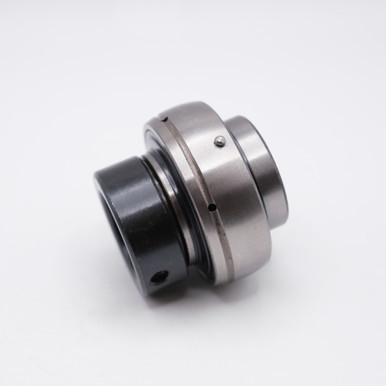

HC200 Bearing Series is Precision Eccentric Bore Insert Ball Bearing With Locking Collar Set Screw, Sealed and Pre-Lubricated with Grease
HC200 Insert Bearing Series has a combination of a standard lubrication feature that has a drilled hole in the groove on the locking collar and to make things more efficient the drilled oil hole opposite to the collar to make it interchangeable with the different manufactures. This Insert Bearing is self aligning for standard load capacity. This specific bearing has an eccentric cam locking collar for the attachment of the shaft.
Match#: NA207-23, HC207-23, UG207-23
Inner Diameter 1-7/16"
Outer Diameter 72mm
Inner Race Width 20mm
Outer Race Width 51.1mm
Material Chrome Steel
Lubrication Chevron SRI-2 Grease
Static Load 3,440 lbs
Dynamic Load 5,780 lbs
Speed Limit 4,500 RPM
Interchange Numbers NA207-23, HC207-23, UG207-23
