    HC207-20 Insert Ball Bearing 1-1/4x72x51.1

    (You save )
    Write a Review
    SKU:
    HC207-20
    Minimum Purchase:
    50 units
    Inner Diameter:
    1-1/4"
    Outer Diameter:
    72mm
    Inner Race Width:
    20mm
    Outer Race Width:
    51.1mm
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    3,440 lbs
    Dynamic Load:
    5,780 lbs
    Speed Limit:
    4,500 RPM
    Interchange Numbers:
    NA207-20, HC207-20, UG207-20

    Adding to cart… category.add_cart_announcement
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview

    Product Description

    HC200 Bearing Series is Precision Eccentric Bore Insert Ball Bearing With Locking Collar Set Screw, Sealed and Pre-Lubricated with Grease

    HC200 Insert Bearing Series has a combination of a standard lubrication feature that has a drilled hole in the groove on the locking collar and to make things more efficient the drilled oil hole opposite to the collar to make it interchangeable with the different manufactures. This Insert Bearing is self aligning for standard load capacity. This specific bearing has an eccentric cam locking collar for the attachment of the shaft.

    Match#: NA207-20, HC207-20, UG207-20

    Product Videos

    Custom Field

    Inner Diameter 1-1/4"
    Outer Diameter 72mm
    Inner Race Width 20mm
    Outer Race Width 51.1mm
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Static Load 3,440 lbs
    Dynamic Load 5,780 lbs
    Speed Limit 4,500 RPM
    Interchange Numbers NA207-20, HC207-20, UG207-20

    Product Reviews

    Write a Review

    Write a Review

    ×
    HC207-20 Insert Ball Bearing 1-1/4x72x51.1
    HC207-20 Insert Ball Bearing 1-1/4x72x51.1

    You May Also Like...

    • MSP2-2 Spacer 4x6x0.1 MSP2-2 Spacer 4x6x0.1

      sku: MSP2-2

      MSP2-2 Spacer 4x6x0.1

    • CFS4V Cam Follower Hexagon Hole Bearing 8x5x4 Side View CFS4V Cam Follower Hexagon Hole Bearing 8x5x4 Front View CFS4V Cam Follower Hexagon Hole Bearing 8x5x4 Side View CFS4V Cam Follower Hexagon Hole Bearing 8x5x4 Front View

      sku: CFS4V

      CFS4V Cam Follower Hexagon Hole Bearing 8x5x4

    • 3775/20 Tapered Roller Bearing Set 2x3.6718x1.1875 ITJ Front View 3775/20 Tapered Roller Bearing Set 2x3.6718x1.1875 ITJ Rear View 3775/20 Tapered Roller Bearing Set 2x3.6718x1.1875 ITJ Front View 3775/20 Tapered Roller Bearing Set 2x3.6718x1.1875 ITJ Rear View

      sku: 3775/20-ITJ

      3775/20 Tapered Roller Bearing Set 2x3.6718x1.1875 ITJ

    • 6710-2RS Ball Bearing 50x62x6 Front View 6710-2RS Ball Bearing 50x62x6 Front View

      sku: 6710-2RS

      6710-2RS Ball Bearing 50x62x6

    • 6305-2RSC3 Ball Bearing 25x62x17 Front View 6305-2RSC3 Ball Bearing 25x62x17 Front View

      sku: 6305-2RSC3

      6305-2RSC3 Ball Bearing 25x62x17

    • B3612 Full Complement Needle Roller Bearing 2-1/4x2-5/8x3/4 Front View B3612 Full Complement Needle Roller Bearing 2-1/4x2-5/8x3/4 Front View

      sku: B3612

      B3612 Full Complement Needle Roller Bearing 2-1/4x2-5/8x3/4

    • R4A-ZZ Miniature Ball Bearing 1/4x3/4x9/32 Front View R4A-ZZ Miniature Ball Bearing 1/4x3/4x9/32 Front View

      sku: R4A-ZZ

      R4A-ZZ Miniature Ball Bearing 1/4x3/4x9/32

    • SMF93-ZZ Stainless Steel Miniature Flanged Ball Bearing 3x9x4 Front View SMF93-ZZ Stainless Steel Miniature Flanged Ball Bearing 3x9x4 Front View

      sku: SMF93-ZZ

      SMF93-ZZ Stainless Steel Miniature Flanged Ball Bearing 3x9x4

    Recommended

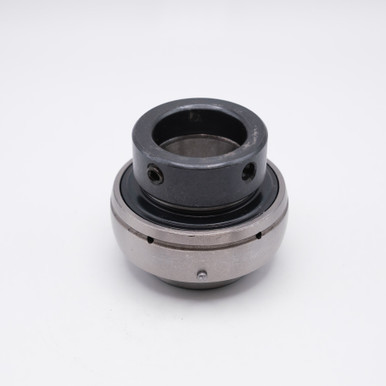

    • HC207 Insert Ball Bearing 35x72x51.1 HC207 Insert Ball Bearing 35x72x51.1 HC207 Insert Ball Bearing 35x72x51.1 HC207 Insert Ball Bearing 35x72x51.1

      sku: HC207

      HC207 Insert Ball Bearing 35x72x51.1

    • HC207-22 Insert Ball Bearing 1-3/8x72x51.1 HC207-22 Insert Ball Bearing 1-3/8x72x51.1 HC207-22 Insert Ball Bearing 1-3/8x72x51.1 HC207-22 Insert Ball Bearing 1-3/8x72x51.1

      sku: HC207-22

      HC207-22 Insert Ball Bearing 1-3/8x72x51.1

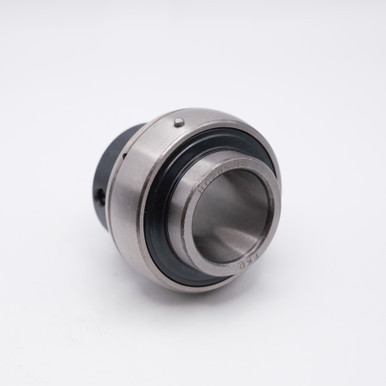

    • HC207-23 Insert Ball Bearing 1-7/16x72x51.1 HC207-23 Insert Ball Bearing 1-7/16x72x51.1 HC207-23 Insert Ball Bearing 1-7/16x72x51.1 HC207-23 Insert Ball Bearing 1-7/16x72x51.1
