  • CSA202 Insert Ball Bearing 15x40x28.6
  • CSA202 Insert Ball Bearing 15x40x28.6 Side View
  • CSA202 Insert Ball Bearing 15x40x28.6 Back View
  • CSA202 Insert Ball Bearing 15x40x28.6 Flat View

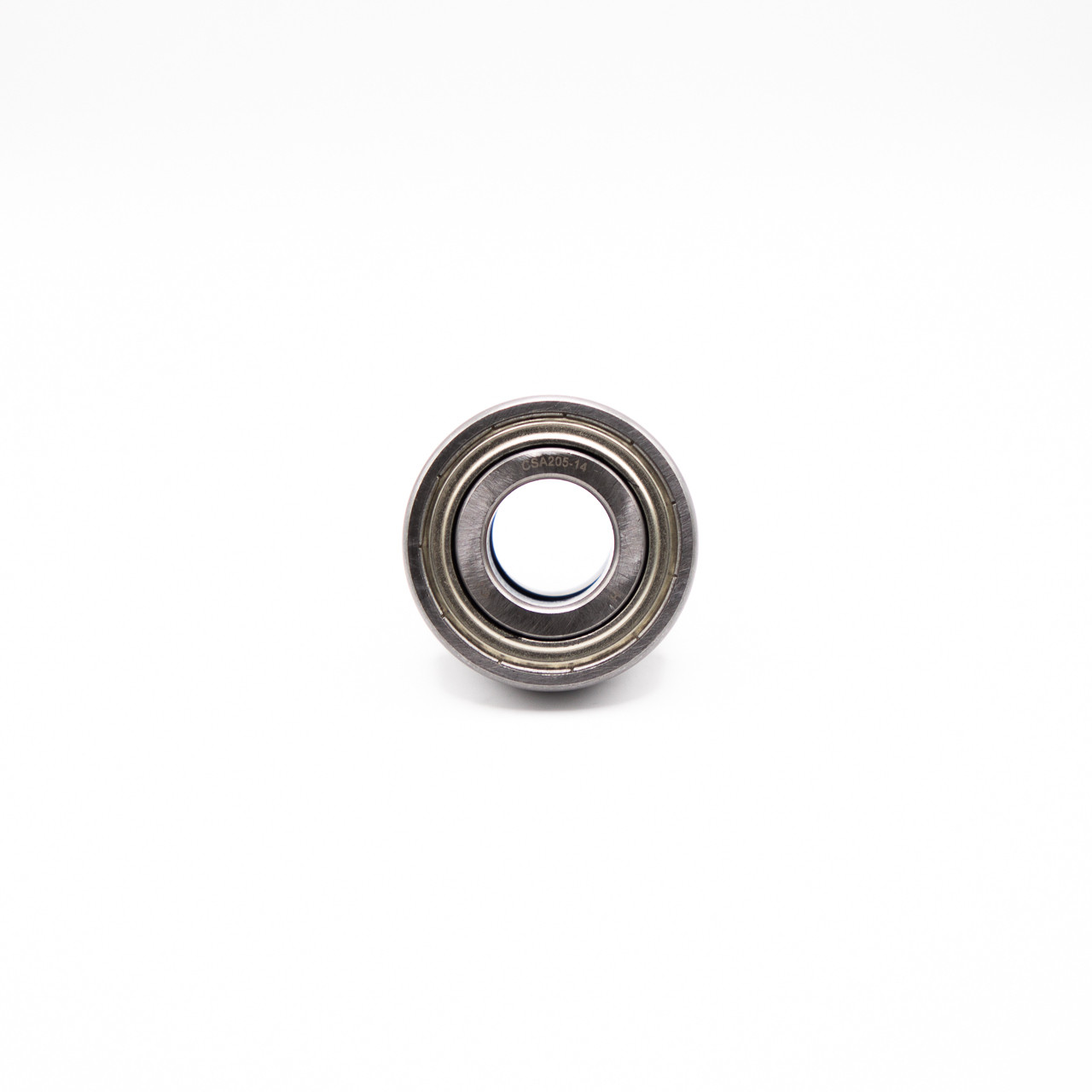

  • CSA202 Insert Ball Bearing 15x40x28.6 Front View
  • CSA202 Insert Ball Bearing 15x40x28.6 Separated Front View
  • CSA202 Insert Ball Bearing 15x40x28.6 Separated Side View
  • CSA202 Insert Ball Bearing 15x40x28.6 Side View CSA202 Insert Ball Bearing 15x40x28.6 Back View CSA202 Insert Ball Bearing 15x40x28.6 Flat View CSA202 Insert Ball Bearing 15x40x28.6 Front View CSA202 Insert Ball Bearing 15x40x28.6 Separated Front View CSA202 Insert Ball Bearing 15x40x28.6 Separated Side View

    CSA202 Insert Ball Bearing 15x40x28.6

    (You save )
    (No reviews yet) Write a Review
    SKU:
    CSA202
    Minimum Purchase:
    100 units
    Inner Diameter:
    15mm
    Outer Diameter:
    40mm
    Inner Race Width:
    12mm
    Outer Race Width:
    28.6mm
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    1,060 lbs
    Dynamic Load:
    2,140 lbs
    Speed Limit:
    8,800 RPM
    Interchange Numbers:
    FHR202, KHR202, AELS202

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Reviews

    Product Description

    Eccentric Bore Insert Ball Bearing for Housing, Cylindrical Outer Race with Locking Collar, Light Duty, Pre Lubricated with Grease

    CSA200 insert bearing is self-aligning for standard load capacity. Standard lubrication feature has a drilled hole in the groove on the locking collar side and drilled oil hole opposite the collar to make it interchangeable with all manufacturers.

    CSA200 Insert Bearings can also be a replacement bearing for many Pillow Blocks, 2-Bolt Flanges, 3-Bolt Flanges, 4-Bolt Flanges, and Take up units. It can also be cost efficient for replacing the insert bearing instead of replacing the whole unit which can be costly.

    Match #: FHR202, KHR202, AELS202

    Product Videos

    Custom Field

    Inner Diameter 15mm
    Outer Diameter 40mm
    Inner Race Width 12mm
    Outer Race Width 28.6mm
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Static Load 1,060 lbs
    Dynamic Load 2,140 lbs
    Speed Limit 8,800 RPM
    Interchange Numbers FHR202, KHR202, AELS202
