  • CSA202-10 Insert Ball Bearing 5/8x40x28.6
  • CSA202-10 Insert Ball Bearing 5/8x40x28.6 Side View
  • CSA202-10 Insert Ball Bearing 5/8x40x28.6 Back View
  • CSA202-10 Insert Ball Bearing 5/8x40x28.6 Flat View
  • CSA202-10 Insert Ball Bearing 5/8x40x28.6 Front View
  • CSA202-10 Insert Ball Bearing 5/8x40x28.6 Separated Front View
  • CSA202-10 Insert Ball Bearing 5/8x40x28.6 Separated Side View
  • CSA202-10 Insert Ball Bearing 5/8x40x28.6 Side View CSA202-10 Insert Ball Bearing 5/8x40x28.6 Back View CSA202-10 Insert Ball Bearing 5/8x40x28.6 Flat View CSA202-10 Insert Ball Bearing 5/8x40x28.6 Front View CSA202-10 Insert Ball Bearing 5/8x40x28.6 Separated Front View CSA202-10 Insert Ball Bearing 5/8x40x28.6 Separated Side View

    CSA202-10 Insert Ball Bearing 5/8x40x28.6

    (You save )
    (No reviews yet) Write a Review
    SKU:
    CSA202-10
    Minimum Purchase:
    50 units
    Inner Diameter:
    5/8"
    Outer Diameter:
    40mm
    Inner Race Width:
    12mm
    Outer Race Width:
    28.6mm
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    1,060 lbs
    Dynamic Load:
    2,140 lbs
    Speed Limit:
    8,800 RPM
    Interchange Numbers:
    FHR202-10, KHR202-10, AELS202-010N

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Reviews

    Product Description

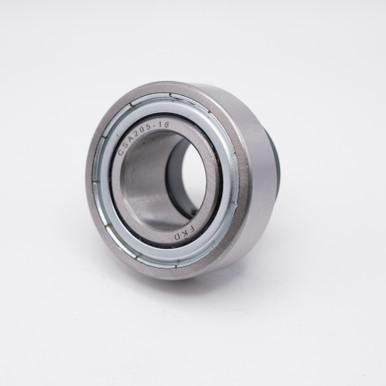

    Eccentric Bore Insert Ball Bearing for Housing, Cylindrical Outer Race with Locking Collar, Light Duty, Pre Lubricated with Grease

    CSA200 insert bearing is self-aligning for standard load capacity. Standard lubrication feature has a drilled hole in the groove on the locking collar side and drilled oil hole opposite the collar to make it interchangeable with all manufacturers.

    CSA200 Insert Bearings can also be a replacement bearing for many Pillow Blocks, 2-Bolt Flanges, 3-Bolt Flanges, 4-Bolt Flanges, and Take up units. It can also be cost efficient for replacing the insert bearing instead of replacing the whole unit which can be costly.

    Match #: FHR202-10, KHR202-10, AELS202-010N

    Product Videos

    Custom Field

    Inner Diameter 5/8"
    Outer Diameter 40mm
    Inner Race Width 12mm
    Outer Race Width 28.6mm
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Static Load 1,060 lbs
    Dynamic Load 2,140 lbs
    Speed Limit 8,800 RPM
    Interchange Numbers FHR202-10, KHR202-10, AELS202-010N
