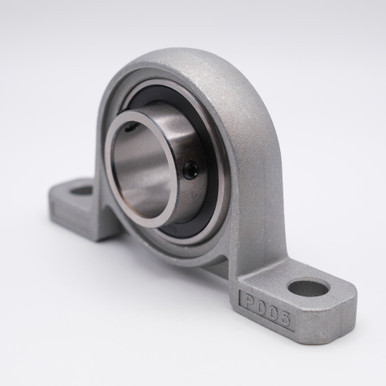

• KP08 Mini Zinc Pillow Block Angled View
  • KP08 Mini Zinc Pillow Block Angled View
  • KP08 Mini Zinc Pillow Block Top View
  • KP08 Mini Zinc Pillow Block Bottom View

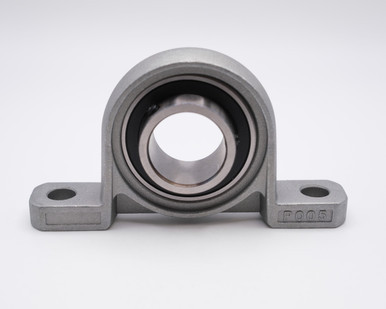

  • KP08 Mini Zinc Pillow Block Front View
  • KP08 Mini Zinc Pillow Block Back View

    • 8mm bore KP08 Mini Zinc Pillow Set Screw Block Bearing KP8UU

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    KP08
    Minimum Purchase:
    100 units
    Inner Diameter:
    8mm
    Overall Height:
    29mm
    Overall Length:
    55mm
    Bolt Hole to Bolt Hole:
    42mm
    Base to Center:
    15mm
    Housing Material:
    Zinc Alloy
    Insert Material:
    Chrome Steel SAE-52100
    Static Load:
    292 lbf
    Dynamic Load:
    742 lbf
    Speed Limit:
    3,500 RPM
    Country of Origin:
    China
    Interchange Numbers:
    KP8UU, KP08U, KP8RS, KVP8LL, KP08-2RS

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    KP08 Pillow Block Bearing

    Key Features

    KP08 Pillow Block Bearing is a Miniature Zinc Alloy Pillow Block with a Set Screw Locking Insert Ball Bearing. This unit features two Set Screws positioned 120° apart on the inner ring of the insert which can be tightened to lock onto a shaft, maximizing holding power while minimizing inner ring distortion. Our KP08 Miniature Mounted Blocks are pre-lubricated with Grease, ensuring they are ready for use upon delivery.

    Applications / Industries

    KP08 Pillow Block Ball Bearings are widely used in various Robotic Systems, HVAC Systems, Food Processing Machinery, Pharmaceutical Machinery, Conveyor Systems, Film Processing Machinery, Fitness Equipment, Office Equipment, among others.

    Product Videos

    Custom Field

    Inner Diameter 8mm
    Overall Height 29mm
    Overall Length 55mm
    Bolt Hole to Bolt Hole 42mm
    Base to Center 15mm
    Housing Material Zinc Alloy
    Insert Material Chrome Steel SAE-52100
    Static Load 292 lbf
    Dynamic Load 742 lbf
    Speed Limit 3,500 RPM
    Country of Origin China
    Interchange Numbers KP8UU, KP08U, KP8RS, KVP8LL, KP08-2RS
