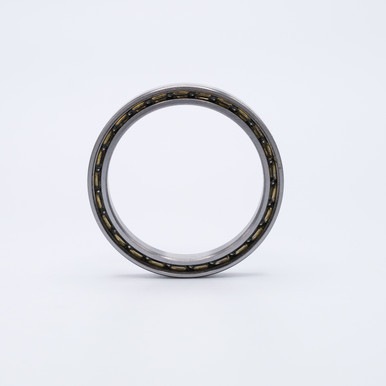

• 6809 Ball Bearing 45x58x7 Front View
  • 6809 Ball Bearing 45x58x7 Angled View

    • 6809 Ball Bearing 45x58x7 Open 61809

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    6809
    Minimum Purchase:
    100 units
    Inner Diameter:
    45mm
    Outer Diameter:
    58mm
    Width:
    7mm
    Closure Type:
    Open
    Material:
    Chrome Steel SAE-52100
    Lubrication:
    Light Oil
    Static Load:
    1,270 lbf
    Dynamic Load:
    1,419 lbf
    Speed Limit:
    11,000 RPM
    Country of Origin:
    China
    Interchange Numbers:
    6809CM, 61809J1, 61809R, 6809

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    6809 Ball Bearing

    Key Features

    6809 is an Extra Thin High Speed Ball Bearing manufactured to be Open on both sides and is pre-lubricated with Light Oil, allowing it to be ready for use upon delivery. Our 6800 Series Extra Thin Ball Bearings inside and outside diameters of the rings have been minimized or thinned out making them ideal for applications with space limitations while still being able to accommodate light radial thrusts or combined loads.

    Applications / Industries

    6809 Extra Thin High Speed Ball Bearings are used in applications requiring high speeds in limited space, some applications would be Textile Machines, Small Motors, Robotics, Printing Machines, Clutches, Drives, Gearboxes, among other.

    Product Videos

    Custom Field

    Inner Diameter 45mm
    Outer Diameter 58mm
    Width 7mm
    Closure Type Open
    Material Chrome Steel SAE-52100
    Lubrication Light Oil
    Static Load 1,270 lbf
    Dynamic Load 1,419 lbf
    Speed Limit 11,000 RPM
    Country of Origin China
    Interchange Numbers 6809CM, 61809J1, 61809R, 6809
