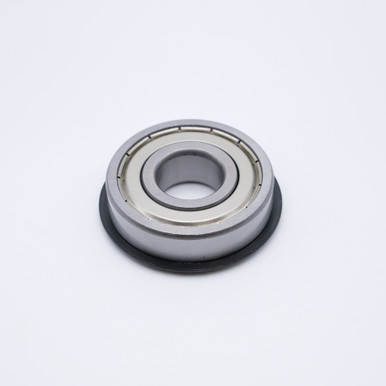

• 6308-ZZNR Ball Bearing 40x90x23 Front View
  • 6308-ZZNR Ball Bearing 40x90x23 Back View

    • 6308-ZZNR Ball Bearing 40x90x23mm Shielded Snap Ring

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    6308-ZZNR
    Minimum Purchase:
    100 units
    Inner Diameter:
    40mm
    Outer Diameter:
    90mm
    Width:
    23mm
    Closure Type:
    Metal Shielded
    Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    5,400 lbf
    Dynamic Load:
    9,150 lbf
    Speed Limit:
    7,400 RPM
    Country of Origin:
    China
    Interchange Numbers:
    6308-ZZNR, 6308ZNR, 6308.ZZJ1NR, 6308 2ZJNR, 308KDDG, 308KSFFG, 6308-ZZNR, 77308G, 1L066, 5972K81, 3308SSG

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    6308-ZZNR Ball Bearing

    Key Features

    6308-ZZNR is a Precision Metric Ball Bearing manufactured with a Snap Ring, Metal Shields on both sides and is pre-lubricated with Grease allowing for use upon delivery. Made from Chrome Steel, 6308-ZZNR is a Metric Ball Bearing that can withstand both moderate radial and axial loads while providing high performance. 6308-ZZNR features a Snap Ring which allows the bearing to be securely positioned in an application while preventing the migration of components during operation. Our 6300 Series Metric Ball Bearings are available with Open, Metal Shielded, and Rubber Sealed Closures and are pre-lubricated with grease or light oil.

    Applications / Industries

    6308-ZZNR Metric Ball Bearings are ideal for heavier load capacity applications such as Electric Motors, Agricultural Machinery, Robotics, Tractors, Textile Machinery, Power Tools, among others.

    Product Videos

    Custom Field

    Inner Diameter 40mm
    Outer Diameter 90mm
    Width 23mm
    Closure Type Metal Shielded
    Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 5,400 lbf
    Dynamic Load 9,150 lbf
    Speed Limit 7,400 RPM
    Country of Origin China
    Interchange Numbers 6308-ZZNR, 6308ZNR, 6308.ZZJ1NR, 6308 2ZJNR, 308KDDG, 308KSFFG, 6308-ZZNR, 77308G, 1L066, 5972K81, 3308SSG
