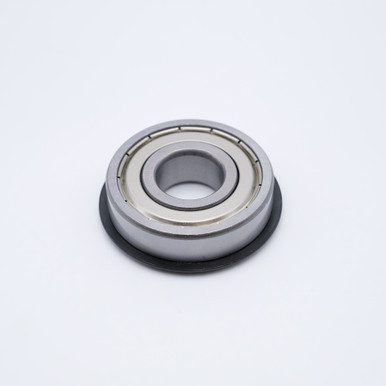

• 6304-ZZNR Ball Bearing 20x52x15mm Top View

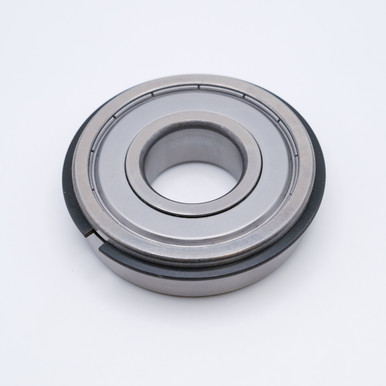

  • 6304-ZZNR Ball Bearing 20x52x15mm Bottom View

    • 6304-ZZNR Ball Bearing 20x52x15 Shielded Snap Ring

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    6304-ZZNR
    Minimum Purchase:
    100 units
    Inner Diameter:
    20mm
    Outer Diameter:
    52mm
    Width:
    15mm
    Closure Type:
    Metal Shielded
    Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    1,770 lbf
    Dynamic Load:
    3,600 lbf
    Speed Limit:
    13,000 RPM
    Country of Origin:
    China
    Interchange Numbers:
    6304ZNR, 6304.2ZR.NR, 6304-2Z1NR, 6304ZZNR, 6304-ZZNR, 304KDDG, 304KSSG, 477304, 6304-2ZNR

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    6304-ZZNR Metric Ball Bearing

    Key Features

    6304-ZZNR is a Precision Metric Ball Bearing manufactured with a Snap Ring, Metal Shields on both sides and pre-lubricated with Grease, allowing for use upon delivery. Made from Chrome Steel, 6304-ZZNR is a Metric Ball Bearing that can withstand both moderate radial and axial loads while providing high performance. 6304-ZZNR features a Snap Ring which allows the bearing to be securely positioned in an application while preventing the migration of components during operation. Our 6300 Series Metric Ball Bearings are available with Open, Metal Shielded, and Rubber Sealed sides and are pre-lubricated with grease or light oil.

    Applications / Industries

    6304-ZZNR Metric Ball Bearings are ideal for heavier load capacity applications such as Electric Motors, Automotive Engines, Factory Automation Components, Agricultural Machinery, Robotics, Textile Machinery, Power Tools, among others.

    Product Videos

    Custom Field

    Inner Diameter 20mm
    Outer Diameter 52mm
    Width 15mm
    Closure Type Metal Shielded
    Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 1,770 lbf
    Dynamic Load 3,600 lbf
    Speed Limit 13,000 RPM
    Country of Origin China
    Interchange Numbers 6304ZNR, 6304.2ZR.NR, 6304-2Z1NR, 6304ZZNR, 6304-ZZNR, 304KDDG, 304KSSG, 477304, 6304-2ZNR
