6002-ZZNR Ball Bearing 15x32x9 Shielded Snap Ring 6002ZZNR AMPEC

SKU: 6002-ZZNR

Free shipping on most orders
Ships from Glendale, CA

6002-ZZNR Ball Bearing 15x32x9mm Front View

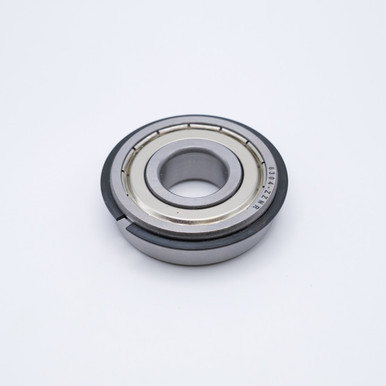

6002-ZZNR Ball Bearing 15x32x9mm Back View

Minimum order: 100 pieces Quotes for this part start at 100 pieces.

Quantity

Minimum order: 100 units

Your quote includes pricing and lead time.

How ordering works

Request a quote for this partChoose a quantity of 100 or more.
Get pricing and lead time by emailYour quote is emailed to you.
Click “Proceed to checkout”Use the button in that email to place your order.

Current Stock:

Specifications

Dimensions

Bore (inner diameter)	15mm
Outer Diameter	32mm
Width	9mm

Construction

Closure Type	Metal Shielded
Material	Chrome Steel SAE-52100
Lubrication	Chevron SRI-2 Grease
Country of Origin	China

Performance

Static Load	635 lbs
Dynamic Load	1,260 lbs
Speed Limit	21,000 RPM

Interchange numbers 9

6002-ZZNR
6002ZNR
6002.2ZJ1NR
6002ZZNR
9102KDDG
102KSFFG
773L02G
1L044
5972K81

Ordering & returns

Lead time

Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

Before you order

Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

Shipping and returns

Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

Description

6002-ZZNR Metric Ball Bearing

Key Features

6002-ZZNR is a Precision Metric Ball Bearing with a Snap Ring, both sides Metal Shielded and is pre-lubricated with Grease, allowing for use upon delivery. Made from Chrome Steel, 6002-ZZNR is a Radial Ball Bearing that can withstand both moderate radial and axial loads while providing high performance. 6002-ZZNR features a Snap Ring which allows the bearing to be securely positioned in an application while preventing the migration of components during operation. Our 6000 Series Extra Light Duty Ball Bearings are available either Open, Metal Shielded, or with Rubber Sealed Closures and are pre-lubricated with grease or light oil.

Applications / Industries

6002-ZZNR Metric Ball Bearings are used in a range of applications from Electric Motors, Pulleys, Generators, Fans, Washing Machines, Dryers, Wheels, Pool Pumps, Conveyors, Printers, Robotics, Gearboxes, Exercise Equipment, Food Processing, Blenders, among others.
