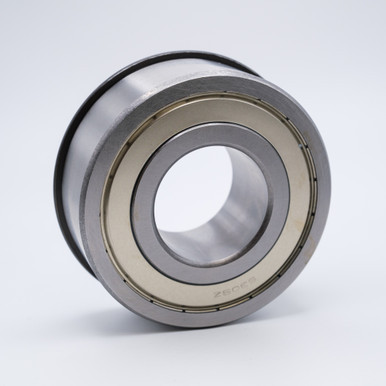

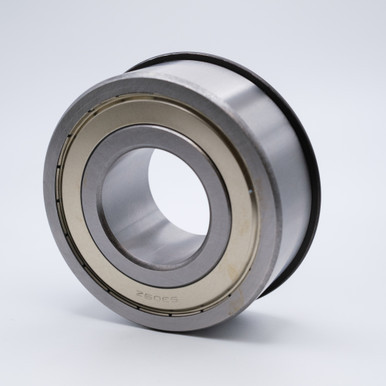

• 5309-ZZNR Double Row Ball Bearing 45x100x39.7 Front View
  • 5309-ZZNR Double Row Ball Bearing 45x100x39.7 Front View
  • 5309-ZZNR Double Row Ball Bearing 45x100x39.7 Front View

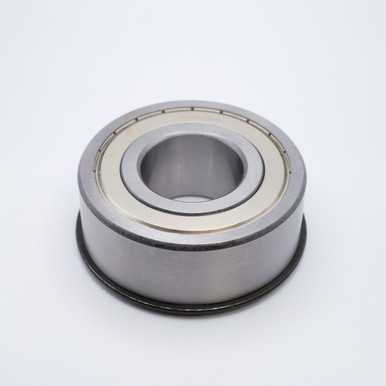

  • 5309-ZZNR Double Row Ball Bearing 45x100x39.7 Top View

    • 5309-ZZNR Double Row Ball Bearing 45x100x39.7 Shielded Snap Ring

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    5309-ZZNR
    Minimum Purchase:
    100 units
    Inner Diameter:
    45mm
    Outer Diameter:
    100mm
    Width:
    39.7mm
    Closure Type:
    Metal Shielded
    Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    12,100 lbf
    Dynamic Load:
    16,300 lbf
    Speed Limit:
    4,000 RPM
    Country of Origin:
    China
    Interchange Numbers:
    5309 ZZNR, 455609 NDH, 5309CFFG MRC

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    5309-ZZNR Double Row Ball Bearing

    Key Features

    5309-ZZNR Double Row Ball Bearing manufactured with Metal Shields on both sides, is pre-lubricated with Grease and has been equipped with a snap ring allowing it to be fitted into an application while preventing any components from migrating out of position during operation. 5309-ZZNR is a Chrome Steel 5300 Series Double Row Ball bearing capable of withstanding both heavy radial and axial loads, making it ideal for Medium Duty Applications. Our 5300 Series Metric Double Row Ball Bearings are available either open, metal shielded, or with rubber sealed closures and come pre-lubricated with either grease or light oil.

    Applications / Industries

    5309-ZZNR Double Row Ball Bearing is used in a variety of Commercial and Industrial Applications including Pumps and Compressors, Automotive Drives, Gearboxes, Wind Turbines, Printing Machines, Agricultural Machinery, Conveying Equipment, Electric Motors, CNC Machinery, Trucks, Mining Equipment, Robotics, Dental Equipment, Blowers, High Speed Vacuum Pumps, Super Chargers, Motorcycle Transmissions, Light-duty Industrial Applications, among others.

    Product Videos

    Custom Field

    Inner Diameter 45mm
    Outer Diameter 100mm
    Width 39.7mm
    Closure Type Metal Shielded
    Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 12,100 lbf
    Dynamic Load 16,300 lbf
    Speed Limit 4,000 RPM
    Country of Origin China
    Interchange Numbers 5309 ZZNR, 455609 NDH, 5309CFFG MRC
