  • 5208-ZZ Ball Bearing 40x80x30.2
  • 5208-ZZ Ball Bearing 40x80x30.2 Front View
  • 5208-ZZ Ball Bearing 40x80x30.2 Front View

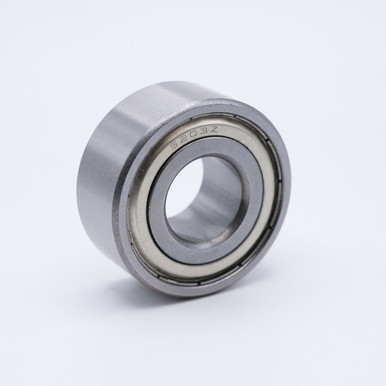

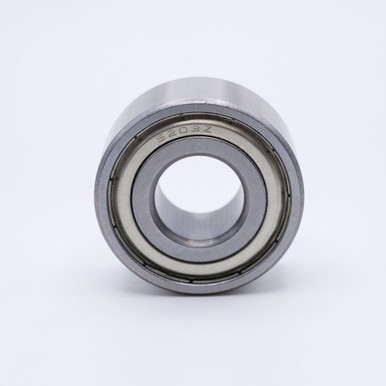

    5208-ZZ Ball Bearing 40x80x30.2

    (You save )
    (No reviews yet) Write a Review
    SKU:
    5208-ZZ
    Minimum Purchase:
    50 units
    Inner Diameter:
    40mm
    Outer Diameter:
    80mm
    Width:
    30.2mm
    Material:
    Chrome Steel
    Lubrication:
    Chevron SRI-2 Grease
    Interchange Numbers:
    FS55508, 3208.2Z, 5208CFF, 5208-2ZJ1, 5208-2ZR, 5208.2ZJ
    Static Load:
    7,250 lbs
    Dynamic Load:
    9,600 lbs
    Grease RPM Limit:
    4,900 RPM
    Oil RPM Limit:
    6,600 RPM

    Adding to cart… category.add_cart_announcement
    Add to Wish List
    • Create New Wish List
    • Facebook
    • Email
    • Print
    • Twitter
    • Pinterest
    • Overview
    • Reviews

    Product Description

    5208ZZ has a 20-degree contact angle, pressed steel cage, and normal clearance rating, 5208.Z supports radial loads, thrust loads in both directions, and combined loads, and occupies less thrust space than a pair of single-row angular contact ball bearings mounted together. Because the two rows of rolling elements are mounted back-to-back, the 5208-2Z bearing arrangement is relatively rigid and can accommodate tilting moments. The 5200 series has a smaller cross section than the 5300 series, making it suitable for smaller spaces, lighter loads, and higher speeds. This 5208-KDD bearing is made of low-alloy, through-hardened carbon chromium steel for durability and resistance to deformity under heavy loads. The 20-degree contact angle of the balls in relation to the raceways gives the bearing a greater capacity for supporting thrust loads over bearings with a standard contact angle of 0 degrees. This bearing 5208-2Z has a pressed steel cage to prevent the balls from coming into contact with each other during use, reducing friction, vibration, and noise. The 5208FF bearing has a normal axial internal clearance designation, making it suitable for applications where the load and speeds do not result in thermal expansion. This 5208VV clearance provides latitude for self-realignment and compensates for static and dynamic alignment errors. This angular contact ball bearing is for use in commercial and industrial applications including pumps and compressors, automotive drives, gearboxes, and printing machines, among others.

    Match #: FS55508, 3208.2Z, 5208CFF, 5208-2ZJ1, 5208-2ZR, 5208.2ZJ

    Product Videos

    Custom Field

    Inner Diameter 40mm
    Outer Diameter 80mm
    Width 30.2mm
    Material Chrome Steel
    Lubrication Chevron SRI-2 Grease
    Interchange Numbers FS55508, 3208.2Z, 5208CFF, 5208-2ZJ1, 5208-2ZR, 5208.2ZJ
    Static Load 7,250 lbs
    Dynamic Load 9,600 lbs
    Grease RPM Limit 4,900 RPM
    Oil RPM Limit 6,600 RPM
