| Bore (inner diameter) | 1-1/2" |
|---|---|
| Overall Length | 7-1/4" |
| Overall Height | 5-7/8" |
| Base to center height | 3-15/16" |
| Bolt-hole spacing | 4-7/8" |
| Bearing Material | Chrome Steel SAE-52100 |
|---|---|
| Housing Material | Cast Iron |
| Lubrication | Chevron SRI-2 Grease |
| Country of Origin | China |
| Static Load | 4,002 lbs |
|---|---|
| Dynamic Load | 6,542 lbs |
| Speed Limit | 3,300 RPM |
Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.
Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.
Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

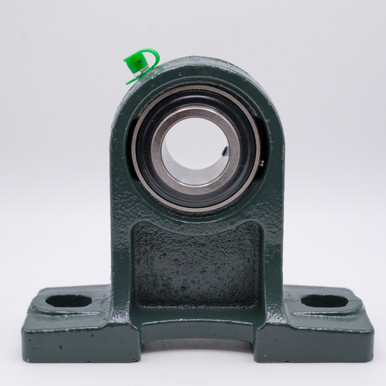

UCPH208-24 bearing is High-Profile Cast Iron Pedestal Pillow Block Housing with Set Screw, pre-lubricated with bearing grease to allow them to be ready to use upon arrival and Include Grease Feeding Access.
Bore Sizes: 1-1/2" Inches
Interchange : UCHP208-108D1, UCPH208-24S, UCPH208-24, UCHP208-108T

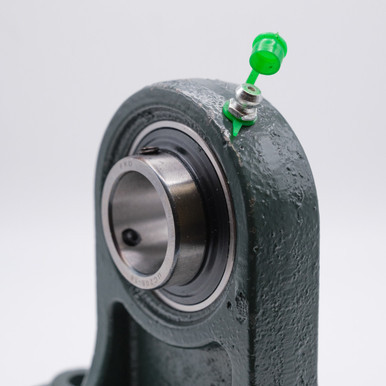

The 1-1/2" bore UCPH208-24 high centerheight pillow block bearing unit is equipped with two specially designed setscrews positioned in the inner ring of the ball bearing to lock onto the shaft. The pillow block set screws are placed at a 90-degree angle to optimize balance between holding power and inner ring distortion.
The UCHP208-108 high center height pillow block bearings are relubricatable and offer a full-width inner ring for added stability. The UCPH208-24 high centerheight pillow block bearing also features a positive-contact, three-piece, fiber-imbedded R-seal to protect against harmfull contaminants and retain lubricant. The setscrew locking mechanism on the pillow block bearing is easy to install and well suited for reversing applications and normal loads.
Applications for the UCPH208-24 centerheight pillow block bearing include: Construction, Conveyors, Food and Beverage, Packaging and General Industrial Equipment.
