Agricultural Bearings

W208PPB8 Square Bore Disc Harrow Ball Bearing 1-1/8" Bore

SKU: W208PPB8
  • Free shipping on most orders
  • Ships from Glendale, CA

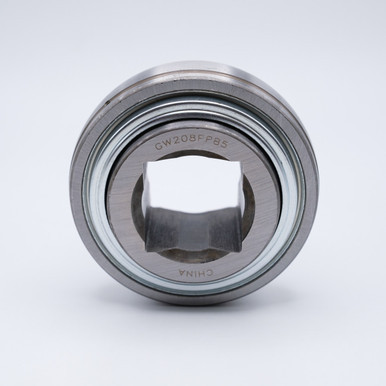

  • W208PPB8 Square Bore Disc Harrow Ball Bearing 1-1/8" Bore Front View
  • W208PPB8 Square Bore Disc Harrow Ball Bearing 1-1/8" Bore Flat View
  • W208PPB8 Square Bore Disc Harrow Ball Bearing 1-1/8" Bore Flat Angled View

    • Minimum order: 100 pieces Quotes for this part start at 100 pieces.

    Minimum order: 100 units

    Your quote includes pricing and lead time.

    How ordering works

    1. Request a quote for this partChoose a quantity of 100 or more.
    2. Get pricing and lead time by emailYour quote is emailed to you.
    3. Click “Proceed to checkout”Use the button in that email to place your order.
    Specifications

    Dimensions

    Bore (inner diameter)1-1/8"
    Outer Diameter80mm
    Width30.2mm

    Construction

    MaterialChrome Steel SAE-52100
    LubricationChevron SRI-2 Grease
    Country of OriginChina

    Performance

    Static Load4,500 lbs
    Dynamic Load8,300 lbs
    Speed Limit500 RPM

    Interchange numbers 4

    • W208PPB8
    • DS208TT8
    • 18S2-2E08E3
    • 2AS08-1-1/8
    Ordering & returns
    Lead time

    Lead times depend on the part and quantity. We confirm availability and timing when we respond to your quote request.

    Before you order

    Please verify dimensions and specifications before ordering. Custom and production orders have specific cancellation and return restrictions.

    Shipping and returns

    Shipping options and charges are confirmed with your order. Read our full Shipping & Returns policy.

    Description

    W208PPB8 Square Bore Ball Bearing

    Key Features

    W208PPB8 is a Square Bore Disc Harrow Bearings with a spherical outer diameter and are made with triple lip seals to protect from corrosive environments. This seal is a one piece shroud cover with three molded contact seals. This bearing is a non-relubricable type bearing and is pre-lubricated with grease, allowing for immediate use upon delivery.

    Applications / Industries

    W208PPB8 Harrow Ball Bearings are used in a range of agricultural applications from Tillage to Hay Balers Peanut Combines, Planters, Harvesters, Electric Motors, Disc Harrows, Grain Augers, Rotary Cutters, Mowers, Sprayers, Fertilizers, Feed Mixers, Manure Spreaders, among others.
