• UCX10-32 Insert Ball Bearing 2" Bore Top View
  • UCX10-32 Insert Ball Bearing 2" Bore Front Right Angled View
  • UCX10-32 Insert Ball Bearing 2" Bore Front Left Angled View

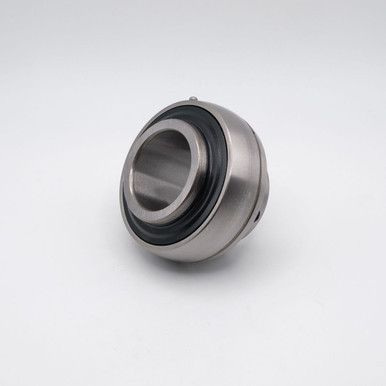

  • UCX10-32 Insert Ball Bearing 2" Bore Back Right Angled View
  • UCX10-32 Insert Ball Bearing 2" Bore Back Left Angled View
  • UCX10-32 Insert Ball Bearing 2" Bore Bottom View

    • UCX10-32 Set Screw Locking Insert Ball Bearing 2x100x25

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    UCX10-32
    Minimum Purchase:
    100 units
    Inner Diameter:
    2"
    Outer Diameter:
    100mm
    Width:
    25mm
    Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    6,610 lbf
    Dynamic Load:
    9,700 lbf
    Speed Limit:
    3,100 RPM
    Country of Origin:
    China
    Interchange Numbers:
    UCX10-32

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    UCX10-32 Insert Ball Bearing

    Key Features

    UCX10-32 is an Insert Ball Bearing with two set screws on the extended end of the inner ring used for holding onto a shaft. This UCX10-32 Insert Ball Bearing is self-aligning for greater load capacity than a standard UC200 Series Bearing as it features a wider inner ring. This specific arrangement is suitable for application as where the direction of rotation is alternative. Our Insert Ball Bearings come in a variety of configurations for various duty strength applications and come pre-lubricated with grease making them ready to use on arrival.

    Applications / Industries

    UCX10-32 Insert Ball Bearings are used in a range of applications from Agricultural Machinery, Conveying Equipment, Construction Equipment, Packaging, Forestry, Aggregate Crushers, Conveyor Systems, Shaft Supports, Food Processing, Car Wash, Food and Beverage Processing, and in the Printing industry.

    Product Videos

    Custom Field

    Inner Diameter 2"
    Outer Diameter 100mm
    Width 25mm
    Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 6,610 lbf
    Dynamic Load 9,700 lbf
    Speed Limit 3,100 RPM
    Country of Origin China
    Interchange Numbers UCX10-32
