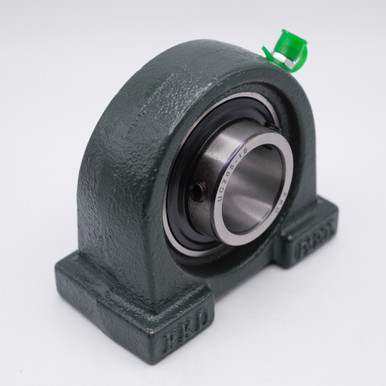

• UCTB205-15 Tapped Based Pillow Block 15/16" VTBS-215 Side View
  • UCTB205-15 Tapped Based Pillow Block 15/16" VTBS-215 Side View
  • UCTB205-15 Tapped Based Pillow Block 15/16" VTBS-215 Front View

    • UCTB205-15 Tapped Based Pillow Block 15/16" Bore VTBS-215

    Minimum Order: 100 UnitsThis item is sold in bulk quantities only
    Wholesale Pricing — By Quote

    Pricing depends on quantity and current production runs. Add this item to a quote and we'll reply with unit pricing and lead time, in writing.

    Write a Review
    SKU:
    UCTB205-15
    Minimum Purchase:
    100 units
    Inner Diameter:
    15/16"
    Overall Height:
    71mm
    Overall Length:
    76mm
    Bolt Hole to Bolt Hole:
    50.8mm
    Base to Center:
    36.5mm
    Housing Material:
    Cast Iron
    Bearing Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    1,750 lbf
    Dynamic Load:
    3,140 lbf
    Speed Limit:
    6,250 RPM
    Country of Origin:
    China
    Interchange Numbers:
    UCTB205-15, VTBS-215, TB-SC-015, YTB-15/16, PT3-U215N, TB-15, UCTB205-15/16

    Before you order: most items are produced to order — lead times are confirmed with your quote. Once placed, most orders cannot be cancelled or returned, so please verify dimensions and specifications first. Free shipping applies to most orders. Read the full Shipping & Returns policy.

    Product Description

    UCTB205-15 Tapped Based Pillow Block

    Key Features

    UCTB205-15 is a Tapped Base Pillow Block Bearing Unit consisting of a Cast Iron Housing with an Anti-Rotation Device and a Set Screw Insert Ball Bearing. The Chrome Steel Insert Bearing features a slinger seal design, is self aligning, and has been equipped with two specifically designed set screws that are positioned in the inner ring of the ball bearing to tighten and attach to a shaft. This unit has a standard base to center height and has a 45˚ grease fitting allowing for re-lubrication of the insert. Our Mounted Block Bearing Units are pre-lubricated with grease to allow them to be ready for use upon arrival.

    Applications / Industries

    UCTB205-15 Tapped Base Pillow Block Bearing are used in a variety of applications including Agriculture, Automotive, Construction, Pump, Manufacturing Equipment, Sporting and Consumer Goods, Conveyor and Fan Assemblies, Farm Machinery, HVAC, Feed Mills, among other Industrial Equipment.

    Product Videos

    Custom Field

    Inner Diameter 15/16"
    Overall Height 71mm
    Overall Length 76mm
    Bolt Hole to Bolt Hole 50.8mm
    Base to Center 36.5mm
    Housing Material Cast Iron
    Bearing Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 1,750 lbf
    Dynamic Load 3,140 lbf
    Speed Limit 6,250 RPM
    Country of Origin China
    Interchange Numbers UCTB205-15, VTBS-215, TB-SC-015, YTB-15/16, PT3-U215N, TB-15, UCTB205-15/16
